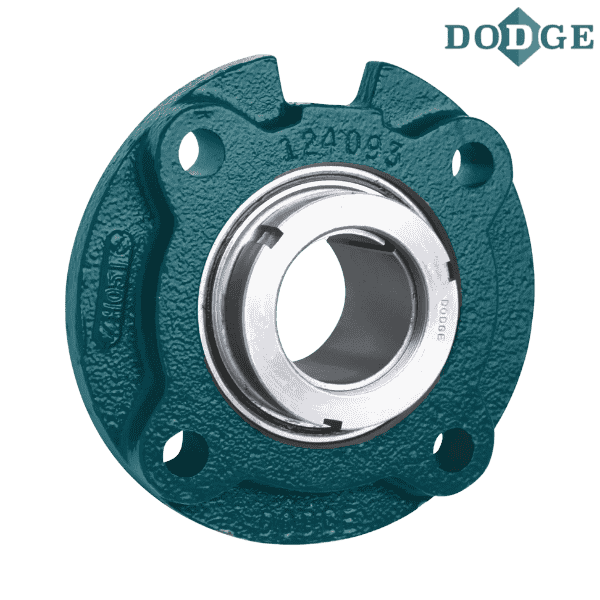

129740 DODGE - FC-GT-107

Brand - DODGE
Item Number - 129740 DODGE - FC-GT-107
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - FC-GT-107
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129502
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136529
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-107-D
Weight (lbs) - 4

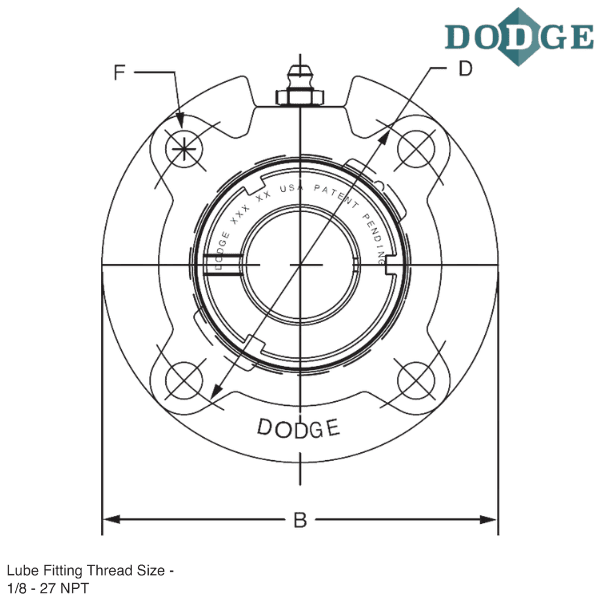

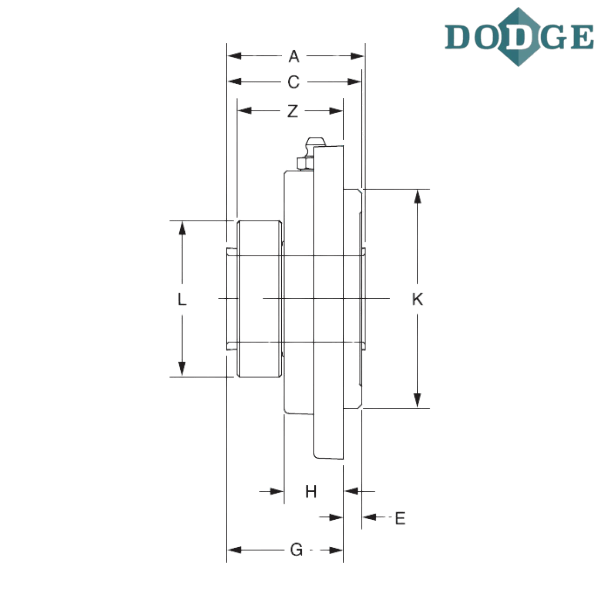

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 5
Thickness (C) inch - 1.81
Bolt Circle (D) inch - 4.13
Pilot Depth (E) inch - 0.38
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.44
H (inch) - 0.84
Pilot Diameter (K) inch - 3.375/3.373
L (inch) - 2.38
Z (inch) - 1.49
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
