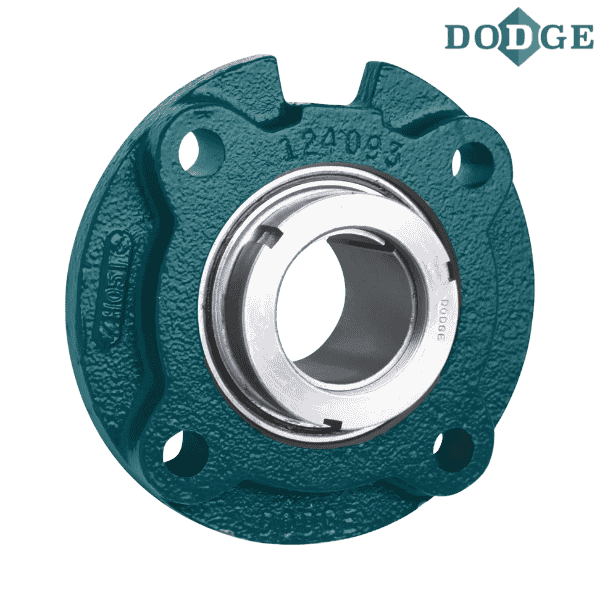

129741 DODGE - FC-GT-108

Brand - DODGE
Item Number - 129741 DODGE - FC-GT-108
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - FC-GT-108
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129503
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136530
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-08-108-D
Weight (lbs) - 4.9

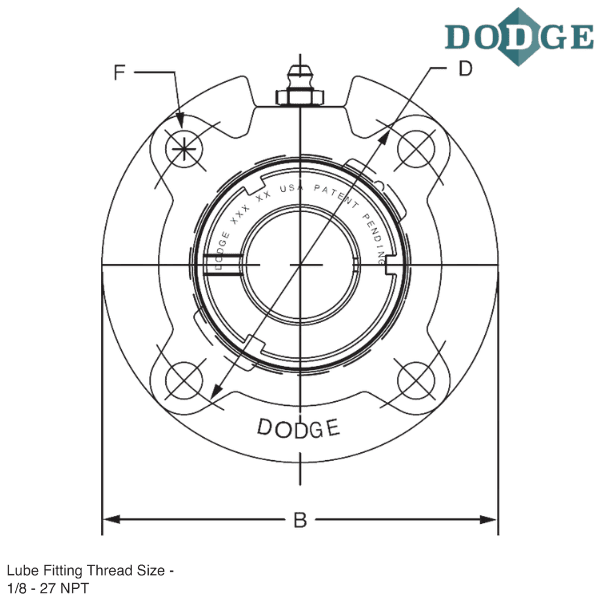

Length Through Bore (A) inch - 1.84
Overall Length (B) inch - 5.25
Thickness (C) inch - 2.01
Bolt Circle (D) inch - 4.38
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.58
H (inch) - 0.89
Pilot Diameter (K) inch - 3.625/3.623
L (inch) - 2.62
Z (inch) - 1.58
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
