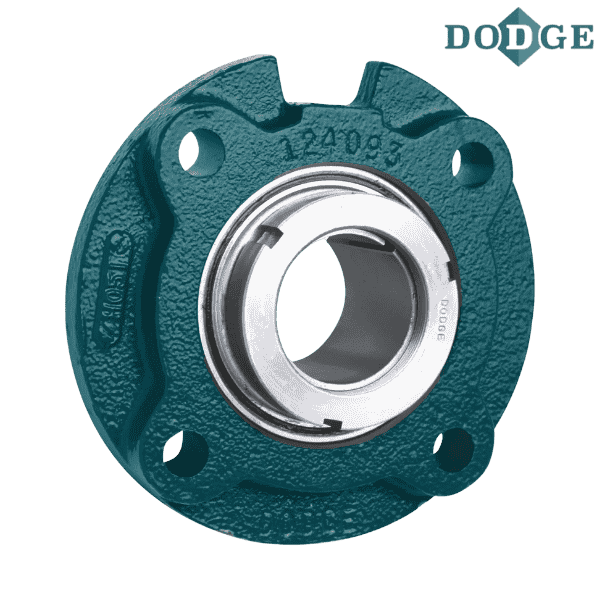

129746 DODGE - FC-GT-200

Brand - DODGE
Item Number - 129746 DODGE - FC-GT-200
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - FC-GT-200
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129505
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136535
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-200-D
Weight (lbs) - 6.2

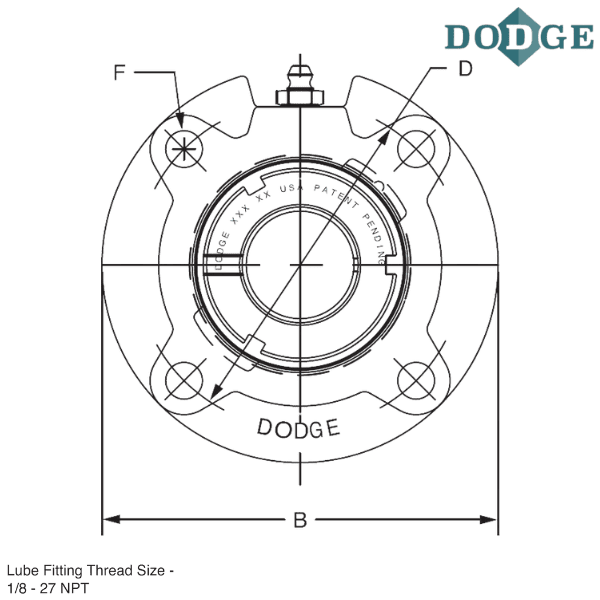

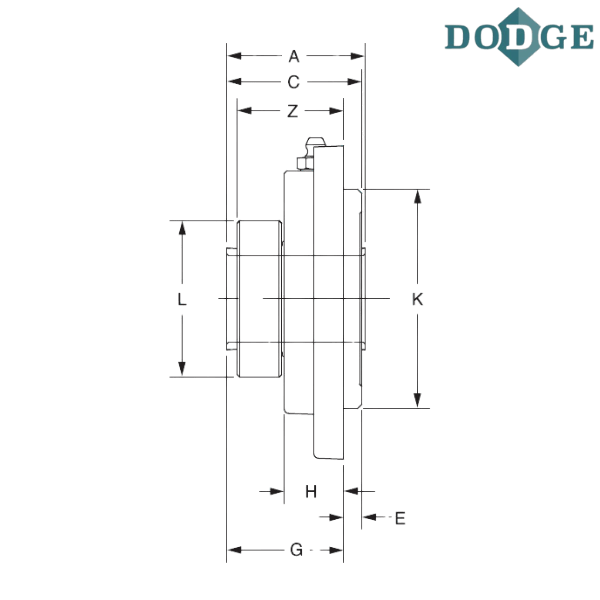

Length Through Bore (A) inch - 1.86
Overall Length (B) inch - 6.13
Thickness (C) inch - 2.02
Bolt Circle (D) inch - 5.13
Pilot Depth (E) inch - 0.47
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.55
H (inch) - 0.92
Pilot Diameter (K) inch - 4.250/4.248
L (inch) - 3.13
Z (inch) - 1.58
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
