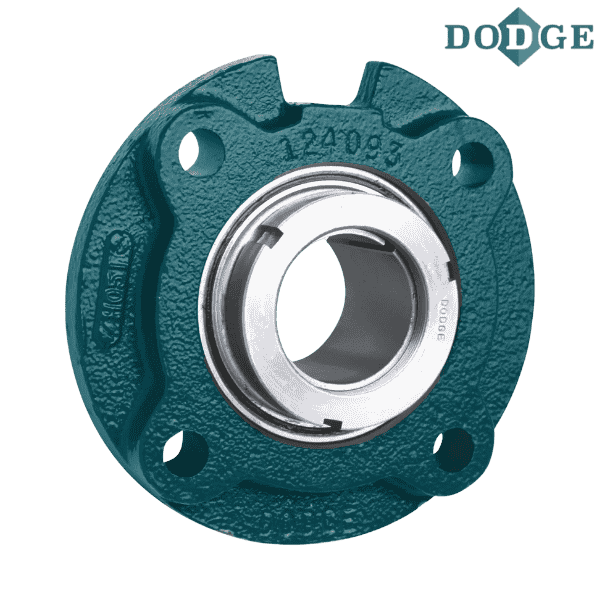

129750 DODGE - FC-GT-30M

Brand - DODGE
Item Number - 129750 DODGE - FC-GT-30M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - FC-GT-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129501
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136555
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 1.4

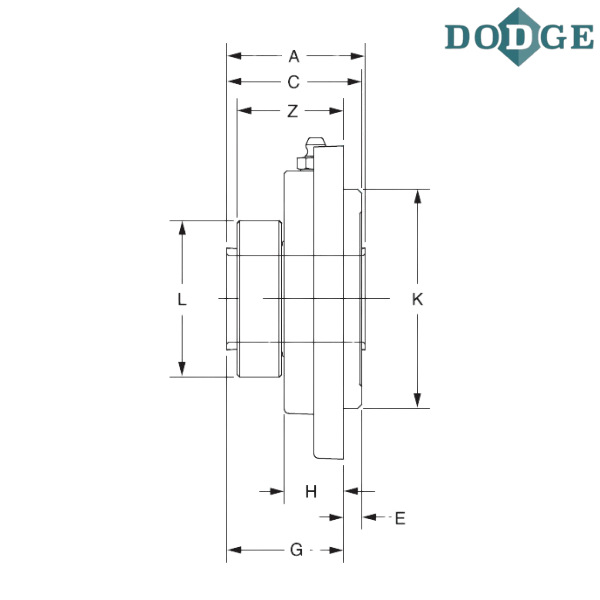

Length Through Bore (A) mm - 40.9

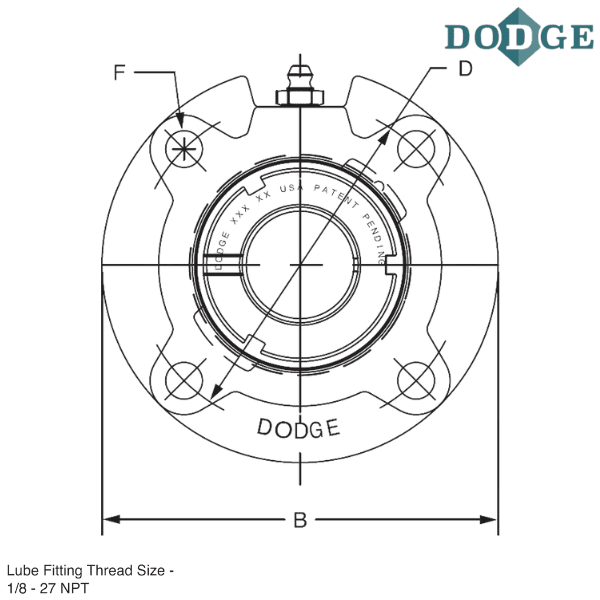

Overall Length (B) mm - 111.3
Thickness (C) mm - 42.7
Bolt Circle (D) mm - 92.2
Pilot Depth (E) mm - 6.4
F-Bolt Diameter - M10
G (mm) - 36.3
H (mm) - 20.6
Pilot Diameter (K) mm - 76.20/76.15
L (mm) - 52.8
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
