129752 DODGE - FC-GT-40M

Brand - DODGE
Item Number - 129752 DODGE - FC-GT-40M

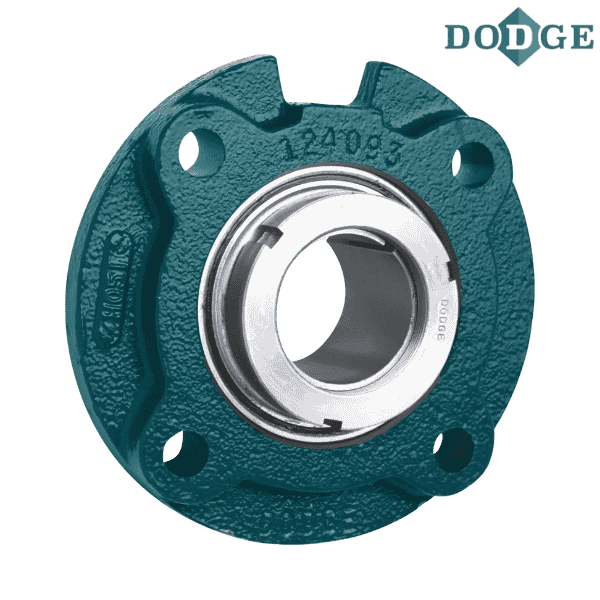

Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - FC-GT-40M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129503
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136593
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-08-40M-D
Weight (kg) - 2.1

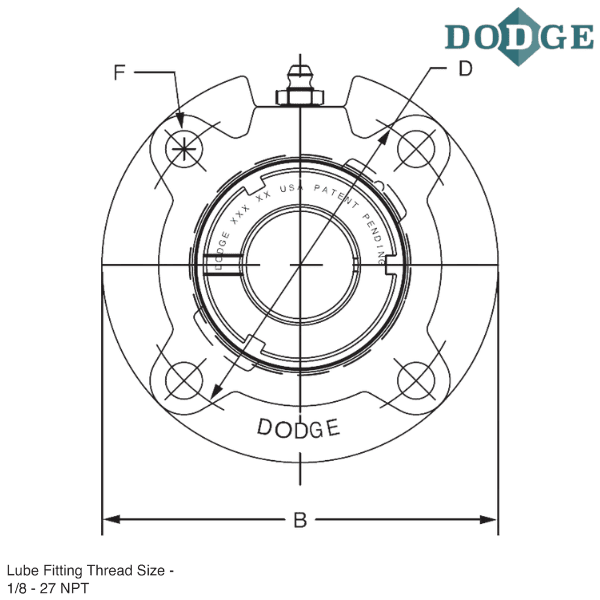

Length Through Bore (A) mm - 46.7
Overall Length (B) mm - 133.4
Thickness (C) mm - 51.1
Bolt Circle (D) mm - 111.3
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 40.1
H (mm) - 22.6
Pilot Diameter (K) mm - 92.08/92.02
L (mm) - 66.5
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
