129754 DODGE - FC-GT-50M

Brand - DODGE
Item Number - 129754 DODGE - FC-GT-50M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - FC-GT-50M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129505
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136558
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-50M-D
Weight (kg) - 2.6

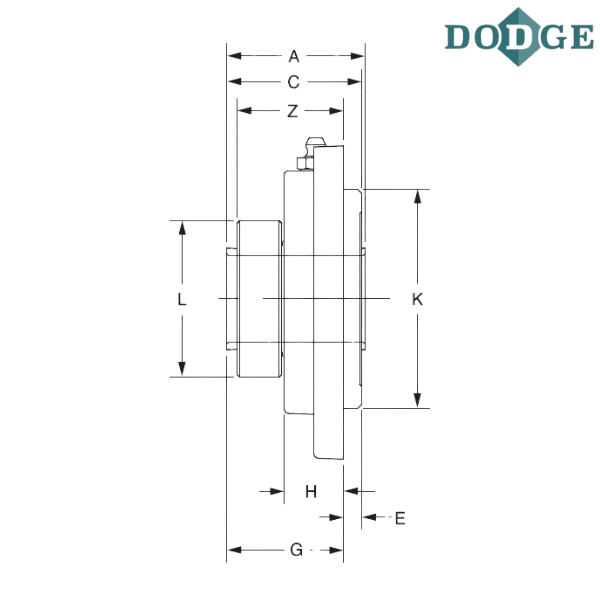

Length Through Bore (A) mm - 47.2

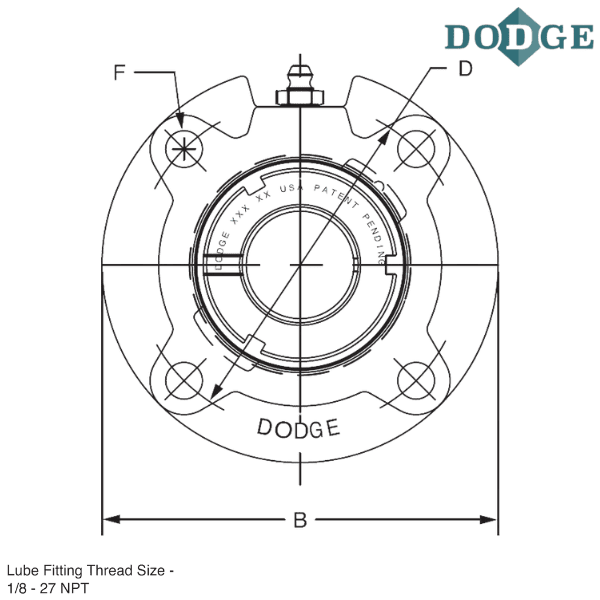

Overall Length (B) mm - 155.7
Thickness (C) mm - 51.3
Bolt Circle (D) mm - 130.3
Pilot Depth (E) mm - 11.9
F-Bolt Diameter - M12
G (mm) - 39.4
H (mm) - 23.4
Pilot Diameter (K) mm - 107.95/107.90
L (mm) - 79.5
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

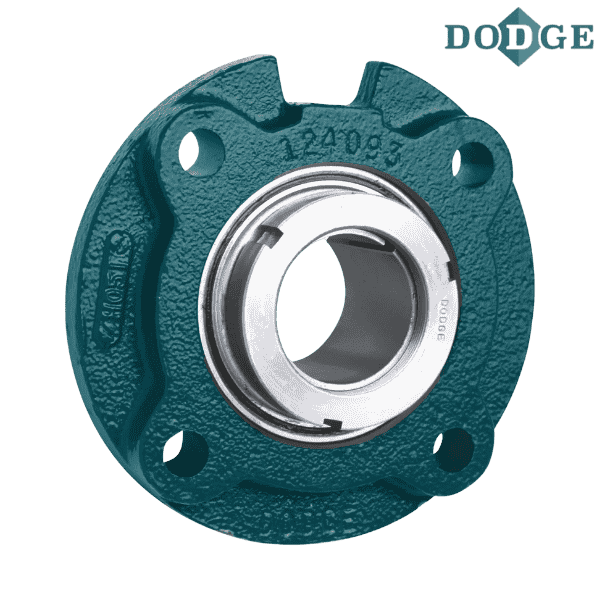

** Images are for representation purposes only
