129755 DODGE - FC-GT-55M

Brand - DODGE
Item Number - 129755 DODGE - FC-GT-55M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - FC-GT-55M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129506
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136559
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-55M-D
Weight (kg) - 3.4

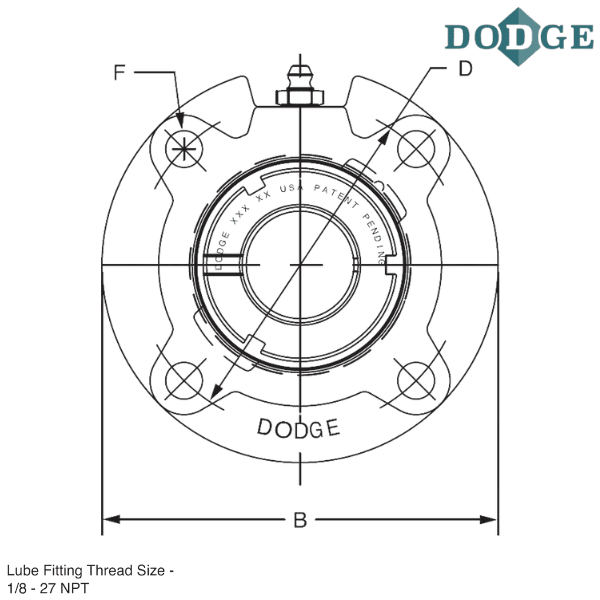

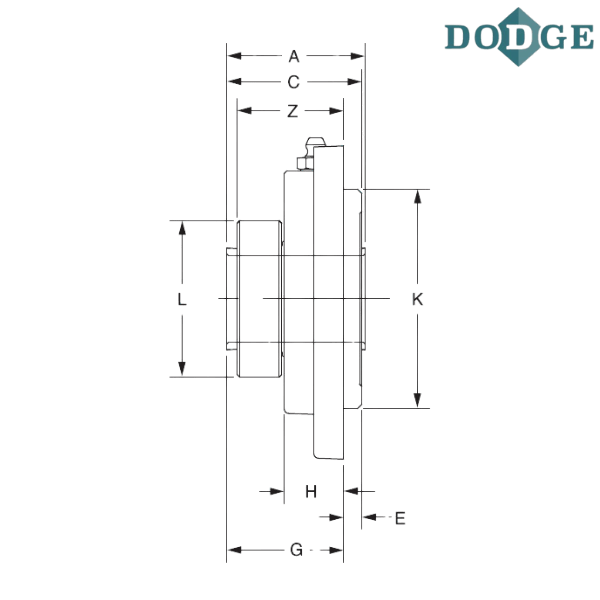

Length Through Bore (A) mm - 49
Overall Length (B) mm - 162.1
Thickness (C) mm - 57.4
Bolt Circle (D) mm - 136.7
Pilot Depth (E) mm - 16
F-Bolt Diameter - M12
G (mm) - 41.4
H (mm) - 25.4
Pilot Diameter (K) mm - 114.30/114.25
L (mm) - 87.1
Z (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

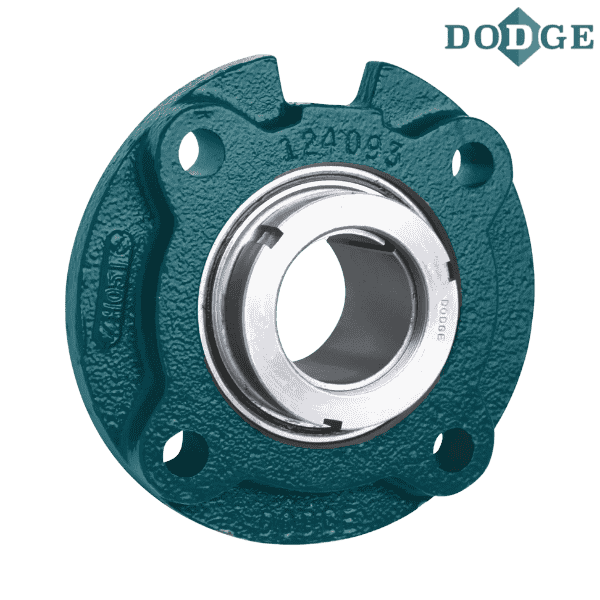

** Images are for representation purposes only
