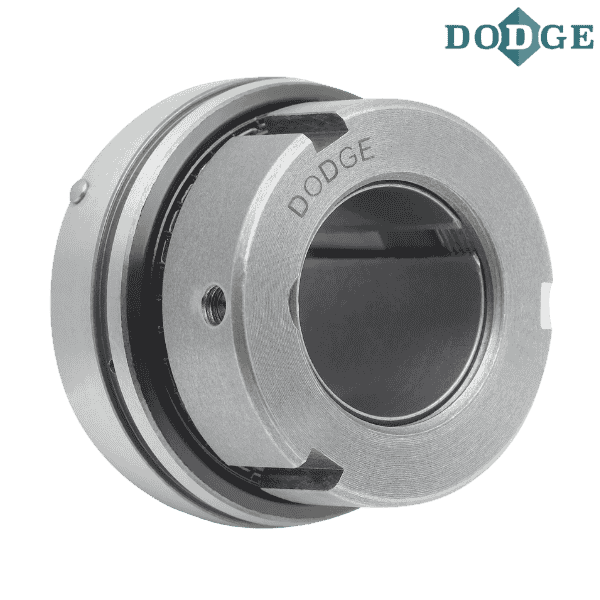

129806 DODGE - INS-GT-70M

Brand - DODGE
Item Number - 129806 DODGE - INS-GT-70M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 214
Shaft Size (mm) - 70
Description - INS-GT-70M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129526
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136560
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-14-70M-D
Weight (kg) - 2.5
Overall Width (A) mm - 60.7
C (mm) - 27.9
Overall Length (D) mm - 125
J (mm) - 6.6
L (mm) - 101.6
SetScrew, UNF (N) - 10-32 x 1/4
W (mm) - 21.3
X (mm) - 40.1
Y (mm) - 39.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
