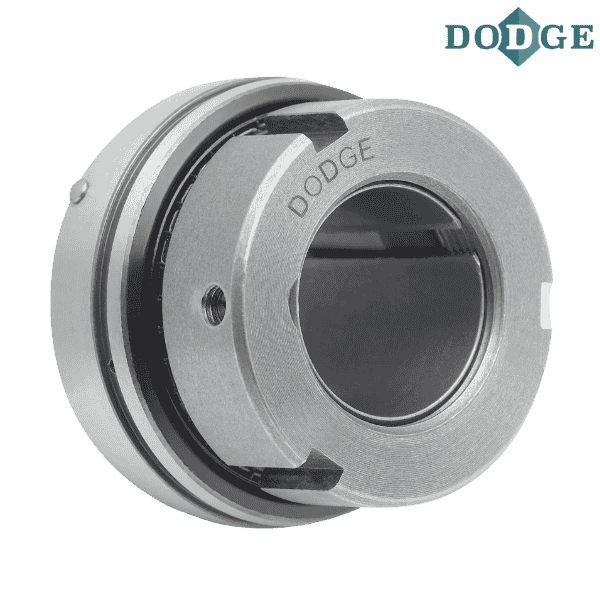

129808 DODGE - INS-GTM-100

Brand - DODGE
Item Number - 129808 DODGE - INS-GTM-100
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Bearing Inserts)
Series - 206
Shaft Size (inch) - 1
Description - INS-GTM-100
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129519
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136541
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-06-100-D
Weight (lbs) - 1.8

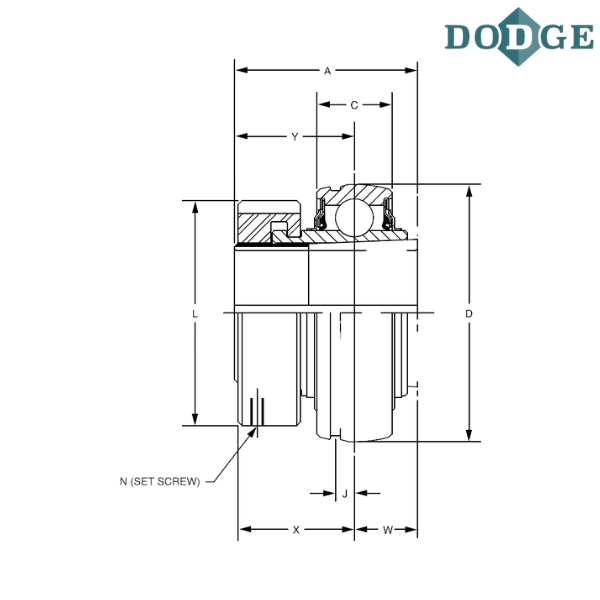

Overall Width (A) inch - 1.61
C (inch) - 0.69
Overall Length (D) inch - 2.4409
J (inch) - 0.16
L (inch) - 2.08
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.52
X (inch) - 1.13
Y (inch) - 1.09
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
