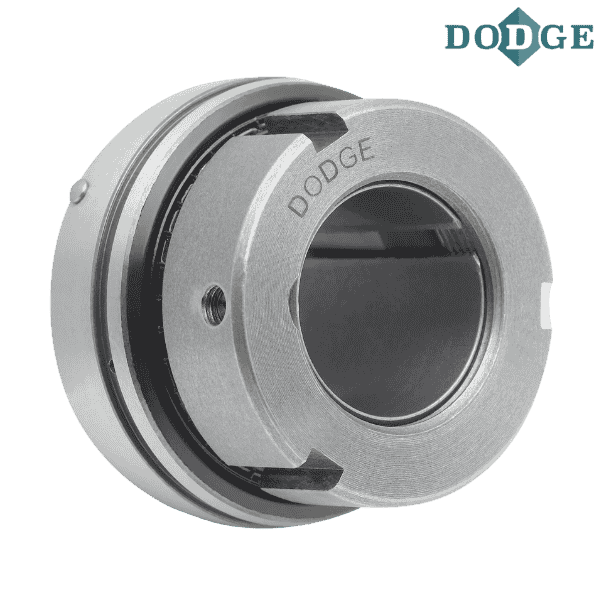

129810 DODGE - INS-GTM-107

Brand - DODGE
Item Number - 129810 DODGE - INS-GTM-107
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Bearing Inserts)
Series - 208
Shaft Size (inch) - 1.4375
Description - INS-GTM-107
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129521
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136543
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-08-107-D
Weight (lbs) - 2.5

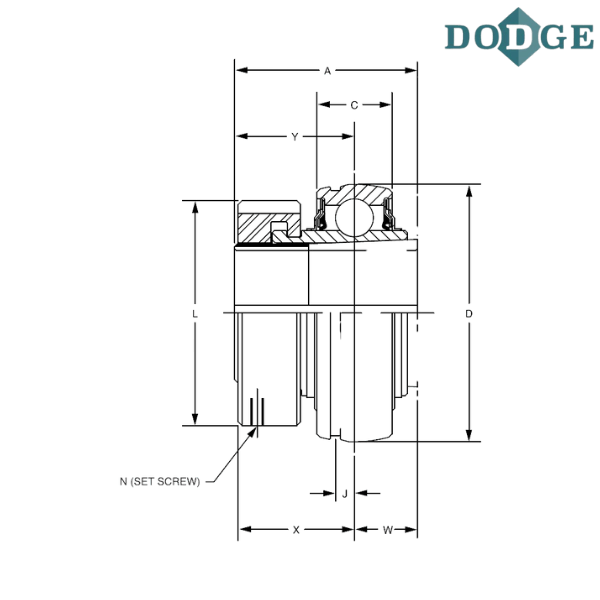

Overall Width (A) inch - 1.84
C (inch) - 0.87
Overall Length (D) inch - 3.1496
J (inch) - 0.22
L (inch) - 2.62
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.61
X (inch) - 1.23
Y (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
