Description
Brand - DODGE
Item Number - 129825 DODGE - INS-GT-012-CR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GT Normal Duty Bearing Inserts)
Series - 204
Shaft Size (inch) - 0.75
Description - INS-GT-012-CR
Part Number (Unit Without Adapter) - 129579
Description (Unit Without Adapter) - INS-GT-04-CR
Part Number (Adapter & Nut Assembly) - 129967
Description (Adapter & Nut Assembly) - AN-GT-04-012-CR
Weight (lbs) - 0.6

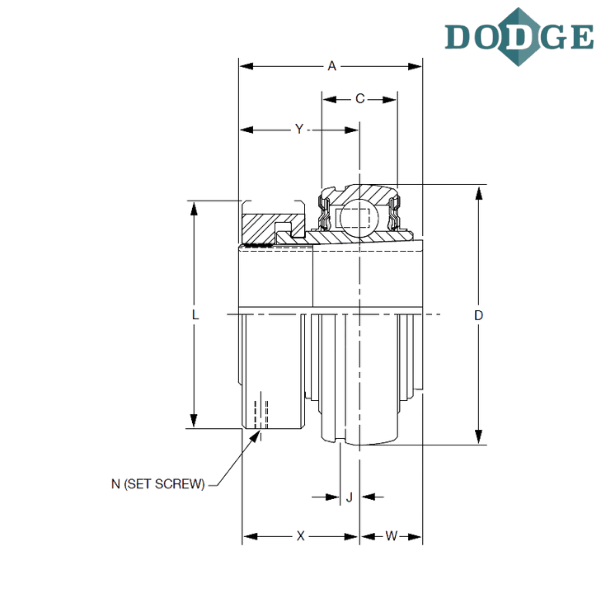

Length Through Bore (A) inch - 1.48
C (inch) - 0.58
Overall Outer Diameter (D) inch - 1.8504
J (inch) - 0.15
L (inch) - 1.5
Screw (N, UNF) inch - 10-32 x 1/4
W (inch) - 0.46
X (inch) - 1.03
Y (inch) - 1.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
CR - Corrosion resistant insert

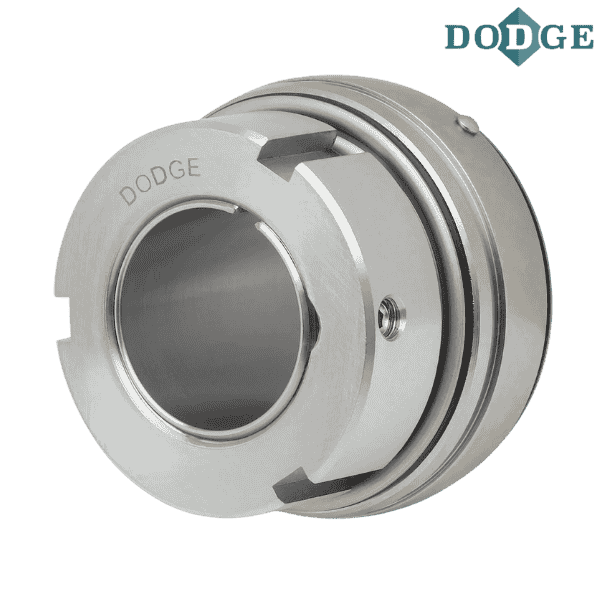

** Images are for representation purposes only
