Description
Brand - DODGE
Item Number - 129827 DODGE - INS-GT-100-CR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GT Normal Duty Bearing Inserts)
Series - 205
Shaft Size (inch) - 1
Description - INS-GT-100-CR
Part Number (Unit Without Adapter) - 129580
Description (Unit Without Adapter) - INS-GT-05-CR
Part Number (Adapter & Nut Assembly) - 129968
Description (Adapter & Nut Assembly) - AN-GT-05-100-CR
Weight (lbs) - 0.8

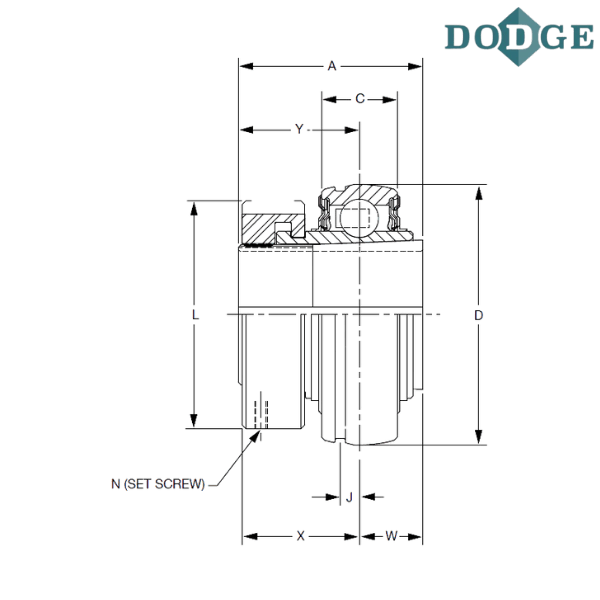

Length Through Bore (A) inch - 1.46
C (inch) - 0.59
Overall Outer Diameter (D) inch - 2.0472
J (inch) - 0.16
L (inch) - 1.8
Screw (N, UNF) inch - 10-32 x 1/4
W (inch) - 0.48
X (inch) - 1
Y (inch) - 0.98
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
CR - Corrosion resistant insert

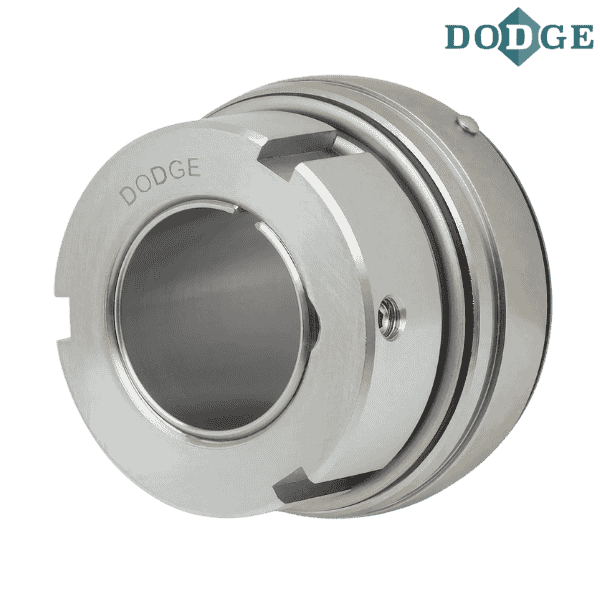

** Images are for representation purposes only
