Description
Brand - DODGE
Item Number - 129834 DODGE - INS-GT-35M-CR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GT Normal Duty Bearing Inserts)
Series - 207
Shaft Size (mm) - 35
Description - INS-GT-35M-CR
Part Number (Unit Without Adapter) - 129582
Description (Unit Without Adapter) - INS-GT-07-CR
Part Number (Adapter & Nut Assembly) - 129983
Description (Adapter & Nut Assembly) - AN-GT-07-35M-CR
Weight (kg) - 0.8

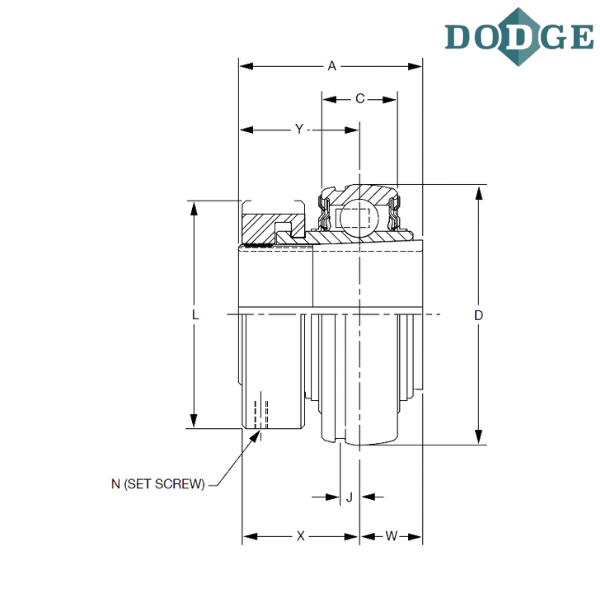

Length Through Bore (A) mm - 41.1
C (mm) - 19.1
Overall Outer Diameter (D) mm - 72
J (mm) - 5.1
L (mm) - 60.5
Screw (N, UNF) mm - 10-32 x 1/4
W (mm) - 13.7
X (mm) - 29
Y (mm) - 27.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
CR - Corrosion resistant insert

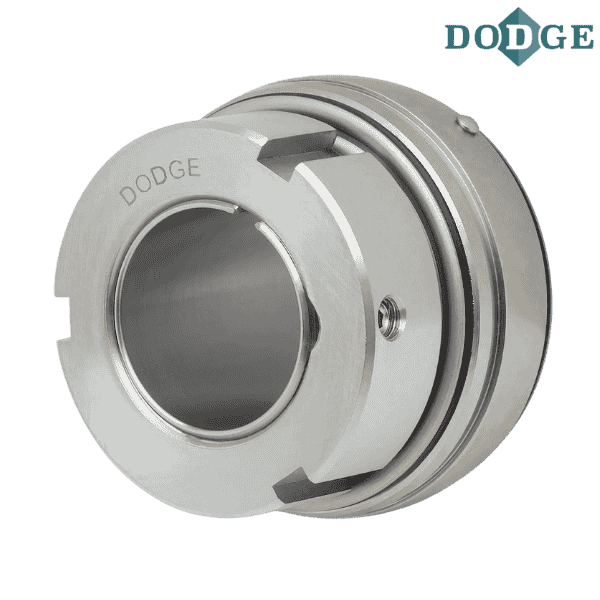

** Images are for representation purposes only
