Description
Brand - DODGE

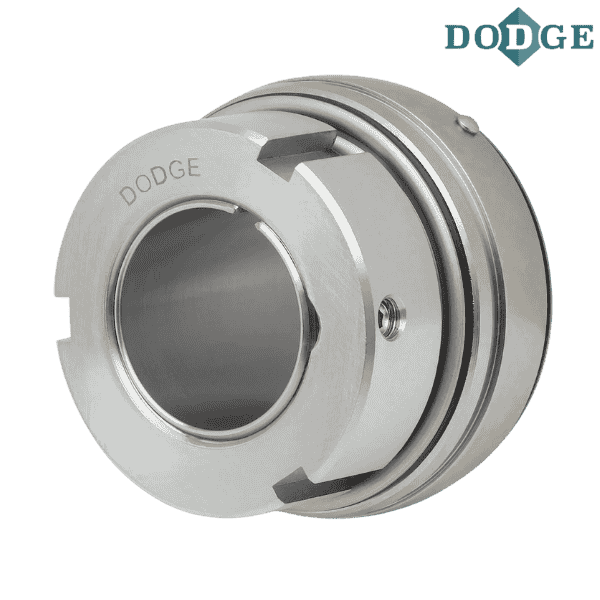

Item Number - 129835 DODGE - INS-GT-108-CR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GT Normal Duty Bearing Inserts)
Series - 208
Shaft Size (inch) - 1.5
Description - INS-GT-108-CR
Part Number (Unit Without Adapter) - 129583
Description (Unit Without Adapter) - INS-GT-08-CR
Part Number (Adapter & Nut Assembly) - 129975
Description (Adapter & Nut Assembly) - AN-GT-08-108-CR
Weight (lbs) - 2.2

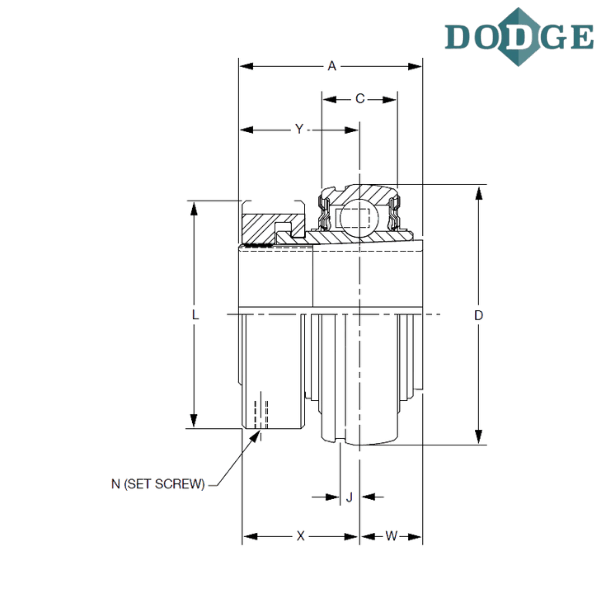

Length Through Bore (A) inch - 1.84
C (inch) - 0.87
Overall Outer Diameter (D) inch - 3.1496
J (inch) - 0.22
L (inch) - 2.62
Screw (N, UNF) inch - 10-32 x 1/4
W (inch) - 0.61
X (inch) - 1.23
Y (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
CR - Corrosion resistant insert
** Images are for representation purposes only
