Description
Brand - DODGE

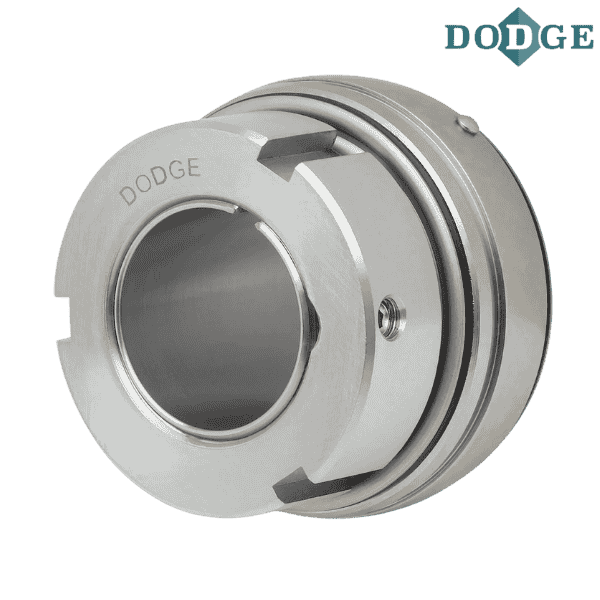

Item Number - 129838 DODGE - INS-GT-45M-CR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GT Normal Duty Bearing Inserts)
Series - 209
Shaft Size (mm) - 45
Description - INS-GT-45M-CR
Part Number (Unit Without Adapter) - 129584
Description (Unit Without Adapter) - INS-GT-09-CR
Part Number (Adapter & Nut Assembly) - 129985
Description (Adapter & Nut Assembly) - AN-GT-09-45M-CR
Weight (kg) - 2.5

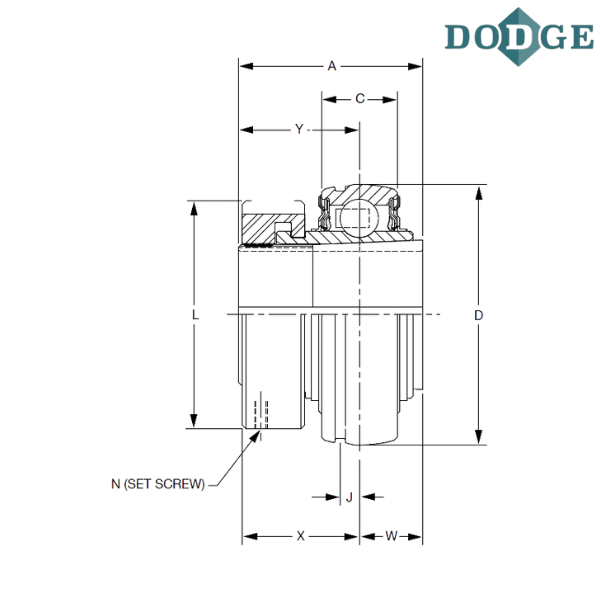

Length Through Bore (A) mm - 47
C (mm) - 22.1
Overall Outer Diameter (D) mm - 85
J (mm) - 6.4
L (mm) - 72.6
Screw (N, UNF) mm - 10-32 x 1/4
W (mm) - 15.7
X (mm) - 32
Y (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
CR - Corrosion resistant insert
** Images are for representation purposes only
