Description
Brand - DODGE
Item Number - 131537 DODGE - TP-GXR-200
Category - Eccentric Collar Ball Bearings (Type GXR Normal Duty Top Angle Take-Up Bearings)
Series - 210
Shaft Size (inch) - 2
Description - TP-GXR-200
Weight (lbs) - 10
Take-Up Frame Size - TP10

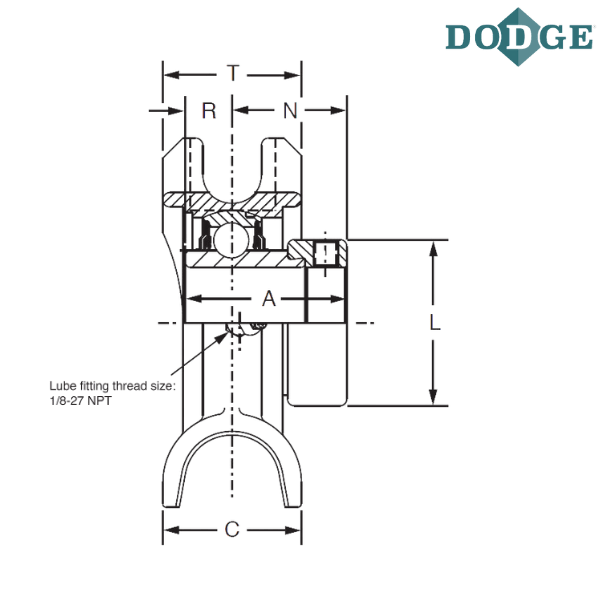

Length Through Bore (A) inch - 2.25
Overall Length (B) inch - 6.5
C (inch) - 2.38
D (inch) - 6
E (inch) - 3.25
Overall Width (J) inch - 6.38
L (inch) - 2.75
N (inch) - 1.5
R (inch) - 0.75
T (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up

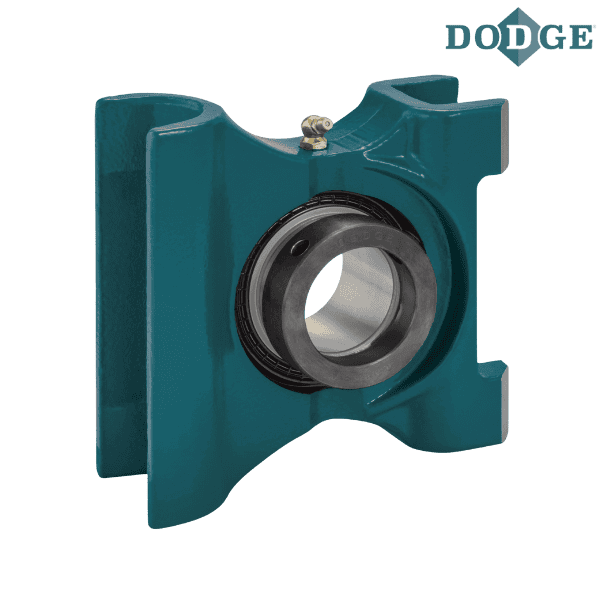

** Images are for representation purposes only
