Description
Brand - DODGE

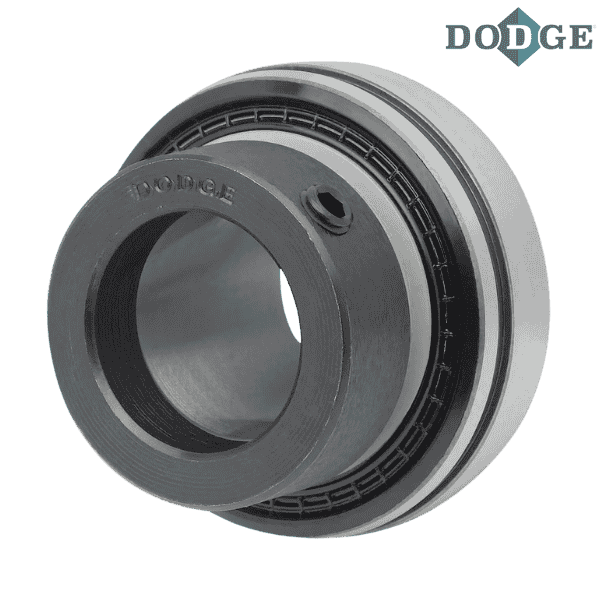

Item Number - 131904 DODGE - INS-SXR-012
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 204
Shaft Size (inch) - 0.75
Description - INS-SXR-012
Weight (lbs) - 0.5

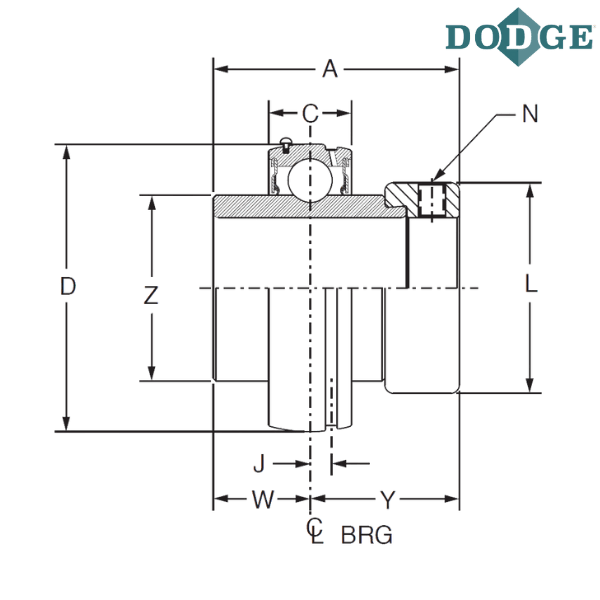

Overall Width (A) inch - 1.55
C (inch) - 0.58
Overall Length (D) inch - 1.8504
J (inch) - 0.15
L (inch) - 1.31
N (inch) - 1/4-28
W (inch) - 0.5
Y (inch) - 1.05
Z (inch) - 1.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
** Images are for representation purposes only
