Description
Brand - DODGE

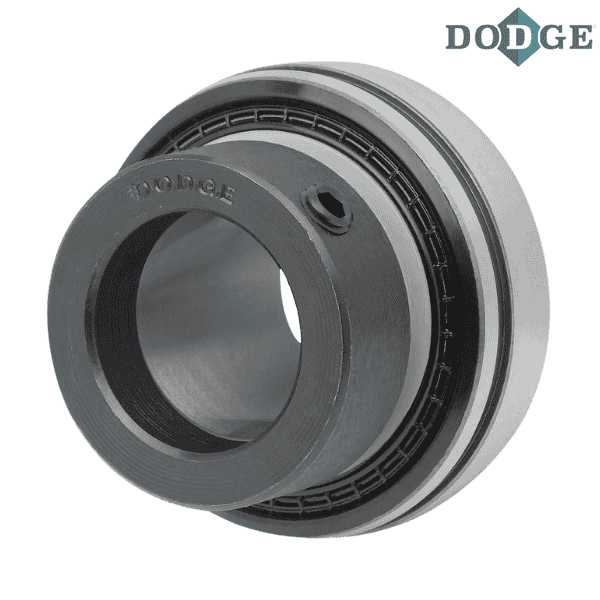

Item Number - 131934 DODGE - INS-SXR-200L
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 211
Shaft Size (inch) - 2
Description - INS-SXR-200L
Weight (lbs) - 3.4

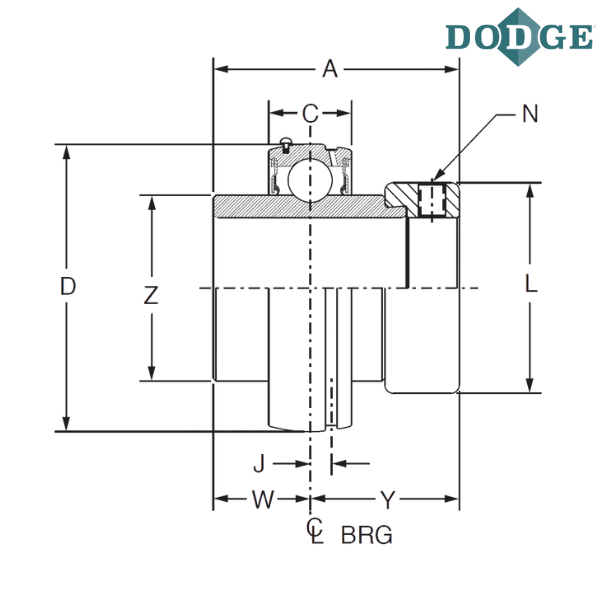

Overall Width (A) inch - 2.59
C (inch) - 0.94
Overall Length (D) inch - 3.937
J (inch) - 0.25
L (inch) - 3
N (inch) - 3/8-24
W (inch) - 0.88
Y (inch) - 1.71
Z (inch) - 2.71
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
L - Next larger ring size
** Images are for representation purposes only
