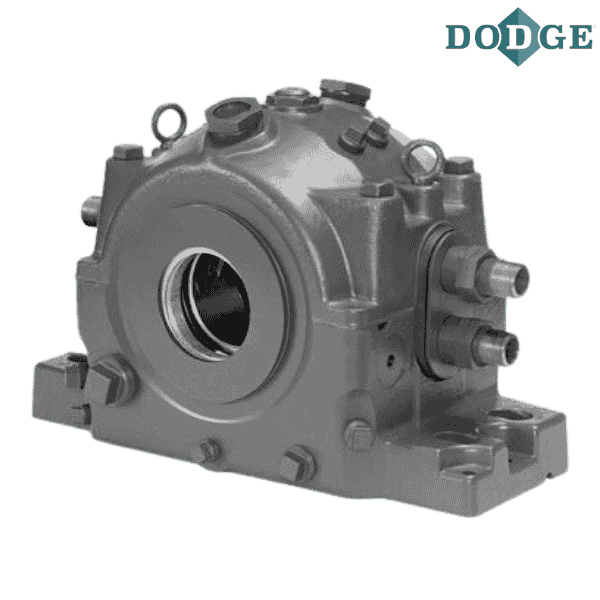

132383 DODGE - 5 7/16 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132383 DODGE - 5 7/16 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 5 7/16 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 5.4375
Weight of Expansion Pillow Block (lbs) - 500

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137105 DODGE - 5-7/16 RTL HI-CAP THST PLT KIT
Weight of Thrust Plate Kit (lbs) - 10.2
Split Thrust Collar Item Number * - 132155 DODGE - 5 7/16 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 10.8

Auxiliary Seal Kit Item Number ** - 133932 DODGE - 5 7/16 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 12.4
Housing End Cap Kit Item Number - 132546 DODGE - 5 7/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 11.6
Heater / Thermostat Item Number *** - 434727 DODGE - 480 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 3
Circulating Oil Inlet Kit Item Number **** - 132203 DODGE - 3757 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132424 DODGE - 5 7/16 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 144

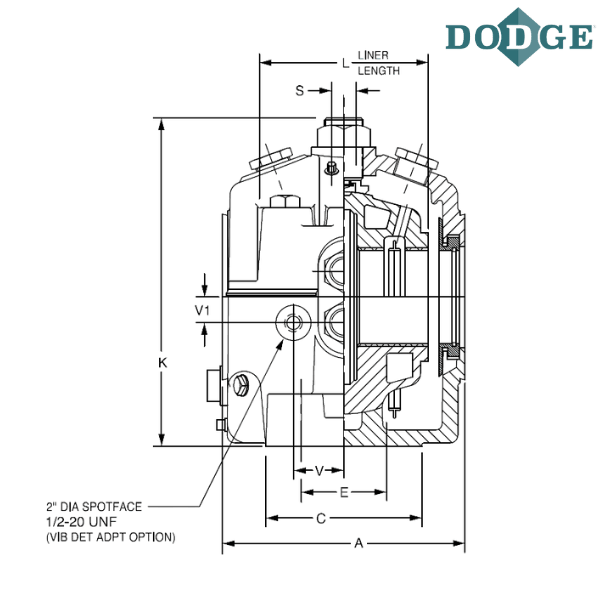

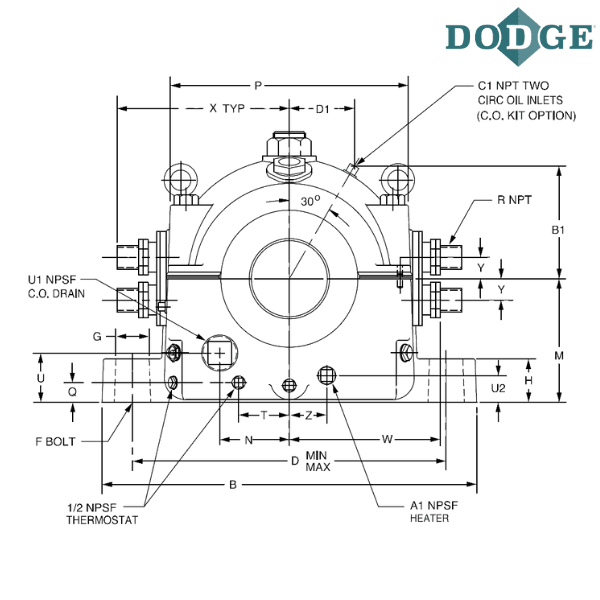

A (inch) - 14
Overall Length (B) inch - 26.75
C (inch) - 9.5
Bolt to Bolt Minimum Distance (D min) inch - 23.25
Bolt to Bolt Maximum Distance (D max) inch - 21.25
E (inch) - 5
F-Bolt Diameter (inch) - 1.125
G (inch) - 2.25
H (inch) - 3.25
Overall Height (K) inch - 18.875
L (inch) - 10
Base to Center Height (M) inch - 8.75
N (inch) - 5.75
P (inch) - 17.25
Q (inch) - 1.625
R (inch) - 1.25
S (inch) - 2
T (inch) - 2.9375
U (inch) - 3.75
U1 (inch) - 2
U2 (inch) - 1.875
V (inch) - 4
V1 (inch) - 1.75
W (inch) - 11.4375 (±3/16)
X (inch) - 12.875
Y (inch) - 1.875
Z (inch) - 5.625
A1 (inch) - 1.25
B1 (inch) - 9.0625
C1 (inch) - 0.25
D1 (inch) - 5.25

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
