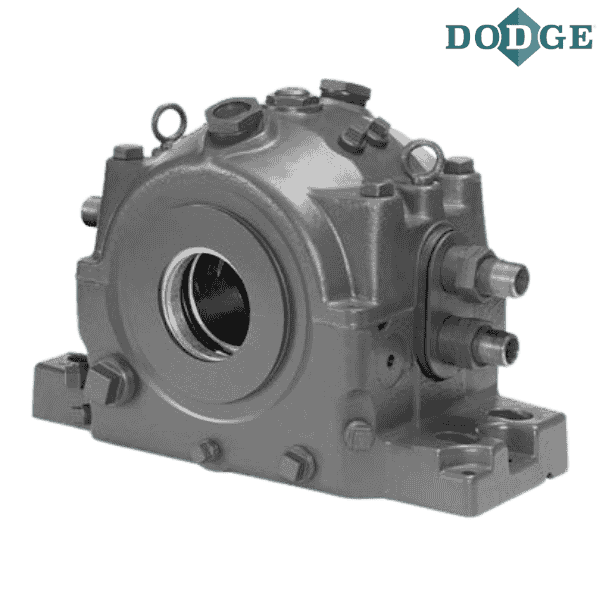

132384 DODGE - 6 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132384 DODGE - 6 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 6 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 6
Weight of Expansion Pillow Block (lbs) - 825

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137106 DODGE - 6 RTL HI-CAPACITY THRST PL KIT
Weight of Thrust Plate Kit (lbs) - 12.7
Split Thrust Collar Item Number * - 132156 DODGE - 6 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 15.9

Auxiliary Seal Kit Item Number ** - 133933 DODGE - 6 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 14.8
Housing End Cap Kit Item Number - 132547 DODGE - 6 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 10.6
Heater / Thermostat Item Number *** - 434727 DODGE - 480 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 3
Circulating Oil Inlet Kit Item Number **** - 132205 DODGE - 614 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132425 DODGE - 6 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 182

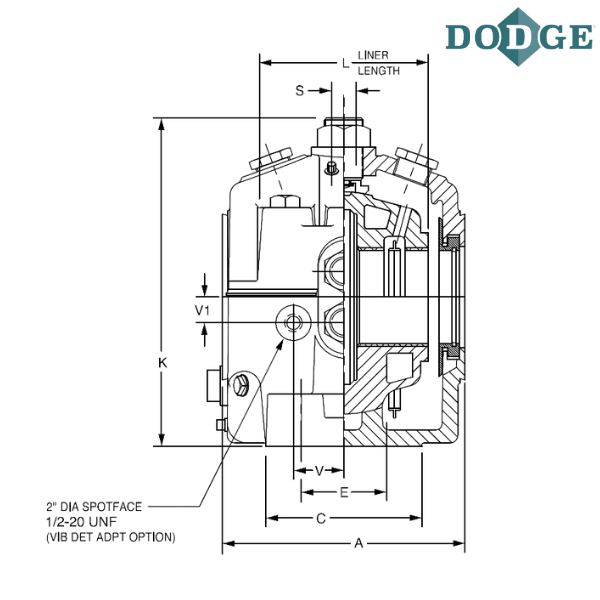

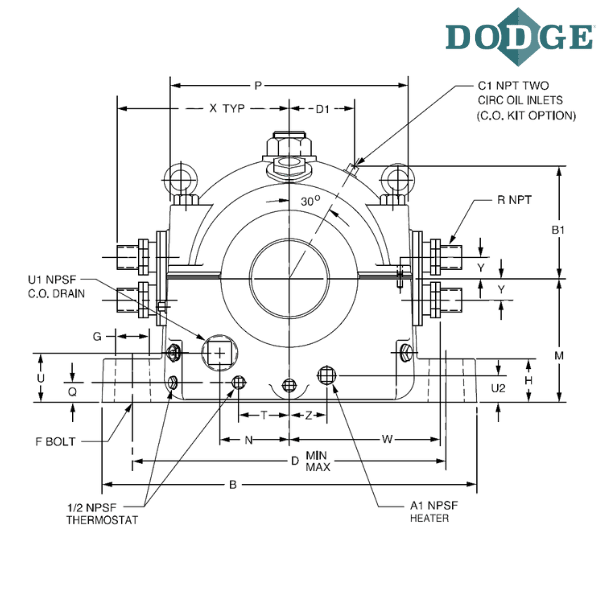

A (inch) - 16
Overall Length (B) inch - 29
C (inch) - 10.5
Bolt to Bolt Minimum Distance (D min) inch - 25.125
Bolt to Bolt Maximum Distance (D max) inch - 22.875
E (inch) - 5.5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.5
H (inch) - 3.5
Overall Height (K) inch - 20.125
L (inch) - 10.875
Base to Center Height (M) inch - 9.5
N (inch) - 6.25
P (inch) - 18.75
Q (inch) - 1.625
R (inch) - 1.25
S (inch) - 2.125
T (inch) - 3.5
U (inch) - 4
U1 (inch) - 2
U2 (inch) - 1.875
V (inch) - 3.75
V1 (inch) - 2
W (inch) - 12.1875 (±3/16)
X (inch) - 13.5
Y (inch) - 1.875
Z (inch) - 6.125
A1 (inch) - 1.25
B1 (inch) - 10.875
C1 (inch) - 0.375
D1 (inch) - 6.3125

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
