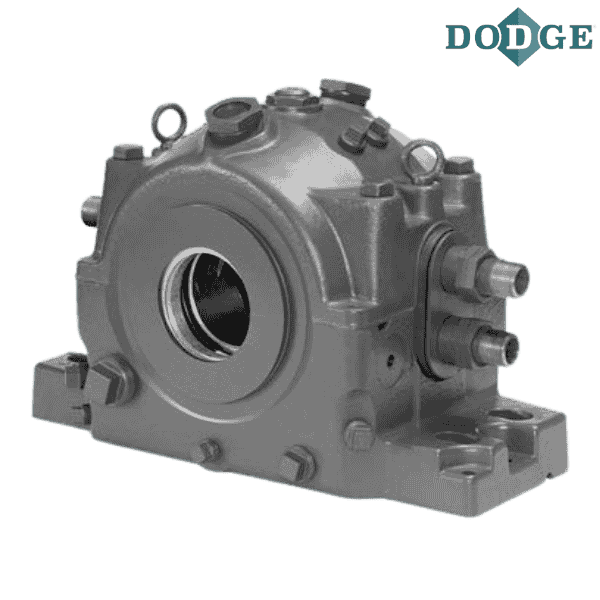

132385 DODGE - 7 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132385 DODGE - 7 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 7 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 7
Weight of Expansion Pillow Block (lbs) - 978

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137107 DODGE - 7 RTL HI-CAPACITY THRUST PLATE KIT
Weight of Thrust Plate Kit (lbs) - 17.6
Split Thrust Collar Item Number * - 132157 DODGE - 7 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 22.4

Auxiliary Seal Kit Item Number ** - 133937 DODGE - 7 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 19
Housing End Cap Kit Item Number - 132548 DODGE - 7 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 13.5
Heater / Thermostat Item Number *** - 434729 DODGE - 740 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 4
Circulating Oil Inlet Kit Item Number **** - 132205 DODGE - 614 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132426 DODGE - 7 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 257

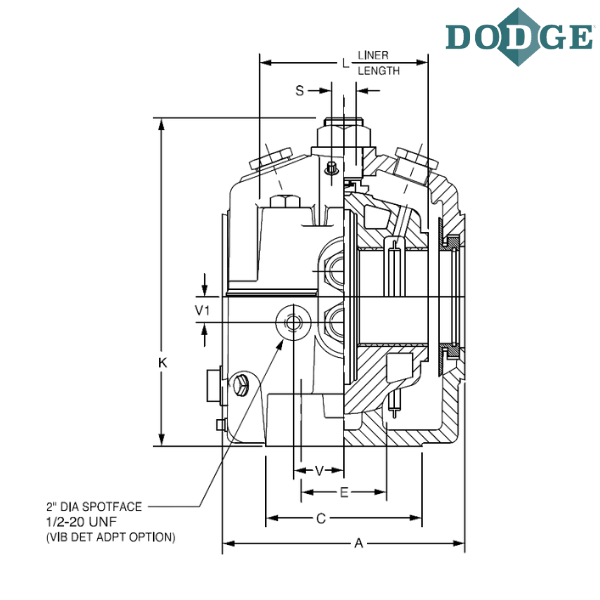

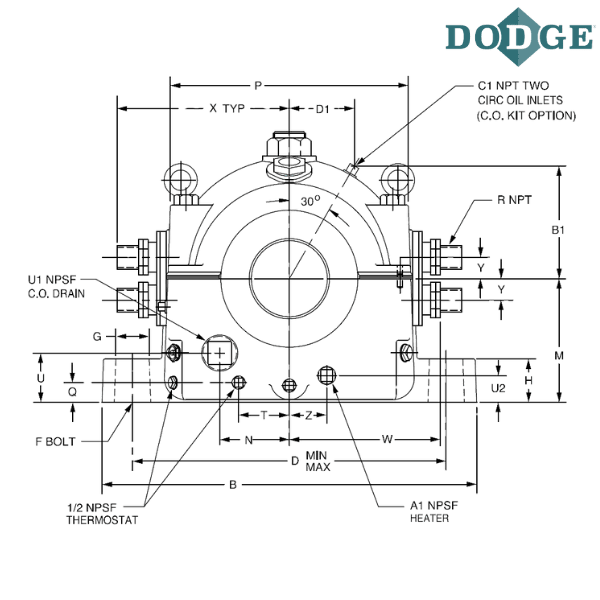

A (inch) - 18
Overall Length (B) inch - 33
C (inch) - 12.5
Bolt to Bolt Minimum Distance (D min) inch - 28.875
Bolt to Bolt Maximum Distance (D max) inch - 26.125
E (inch) - 6.5
F-Bolt Diameter (inch) - 1.5
G (inch) - 3
H (inch) - 4
Overall Height (K) inch - 22.375
L (inch) - 12.5
Base to Center Height (M) inch - 10.75
N (inch) - 6.875
P (inch) - 21.25
Q (inch) - 2
R (inch) - 1.25
S (inch) - 2.25
T (inch) - 4
U (inch) - 4.25
U1 (inch) - 2
U2 (inch) - 2
V (inch) - 4.5
V1 (inch) - 2
W (inch) - 13.1875 (±3/16)
X (inch) - 14.625
Y (inch) - 1.875
Z (inch) - 6.875
A1 (inch) - 1.25
B1 (inch) - 12.0625
C1 (inch) - 0.375
D1 (inch) - 6.9375

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
