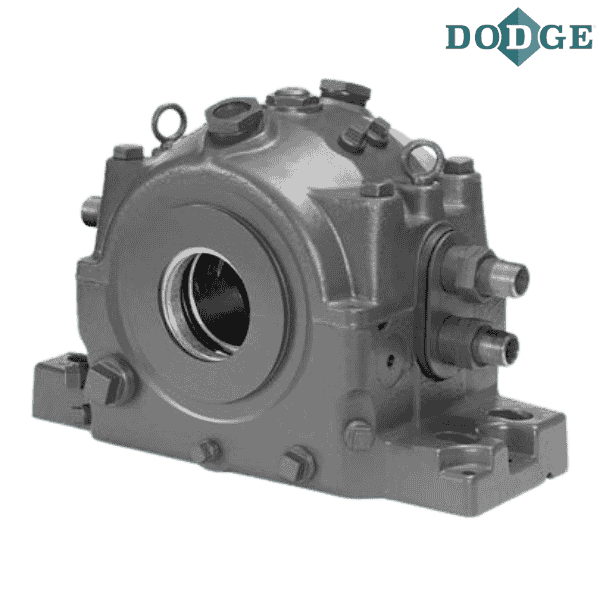

132387 DODGE - 9 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132387 DODGE - 9 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 9 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 9
Weight of Expansion Pillow Block (lbs) - 1650

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137109 DODGE - 9 RTL HI-CAPACITY THRT PL KIT
Weight of Thrust Plate Kit (lbs) - 42.6
Split Thrust Collar Item Number * - 132159 DODGE - 9 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 45.9

Auxiliary Seal Kit Item Number ** - 132814 DODGE - 9 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 23.1
Housing End Cap Kit Item Number - 132564 DODGE - 9" SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 15.9
Heater / Thermostat Item Number *** - 434729 DODGE - 740 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 4
Circulating Oil Inlet Kit Item Number **** - 132205 DODGE - 614 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132428 DODGE - 9 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 623

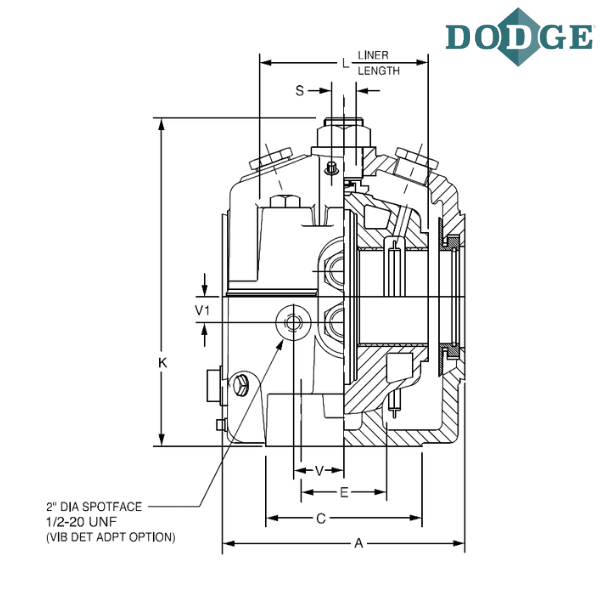

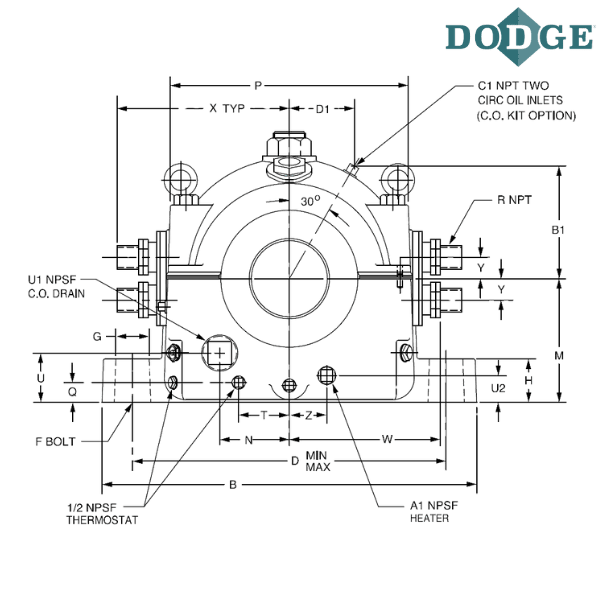

A (inch) - 22.75
Overall Length (B) inch - 41.5
C (inch) - 15.5
Bolt to Bolt Minimum Distance (D min) inch - 36.625
Bolt to Bolt Maximum Distance (D max) inch - 33.375
E (inch) - 8
F-Bolt Diameter (inch) - 1.75
G (inch) - 3.5
H (inch) - 5
Overall Height (K) inch - 28.25
L (inch) - 16.25
Base to Center Height (M) inch - 13.5
N (inch) - 9.1875
P (inch) - 27.25
Q (inch) - 2.25
R (inch) - 2
S (inch) - 3
T (inch) - 5.5
U (inch) - 5.0625
U1 (inch) - 2
U2 (inch) - 2.25
V (inch) - 5.5
V1 (inch) - 2
W (inch) - 17.125 (±3/16)
X (inch) - 19.25
Y (inch) - 2.25
Z (inch) - 9.0625
A1 (inch) - 1.25
B1 (inch) - 14.1875
C1 (inch) - 0.375
D1 (inch) - 8.1875

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
