132388 DODGE - 10 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132388 DODGE - 10 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 10 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 10
Weight of Expansion Pillow Block (lbs) - 2150

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137110 DODGE - 10 RTL HI-CAPACITY THRUST PLATE KIT
Weight of Thrust Plate Kit (lbs) - 52.7
Split Thrust Collar Item Number * - 132160 DODGE - 10 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 59.8

Auxiliary Seal Kit Item Number ** - 132816 DODGE - 10 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 24.2
Housing End Cap Kit Item Number - 132565 DODGE - 10 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 16.4
Heater / Thermostat Item Number *** - 434729 DODGE - 740 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 4
Circulating Oil Inlet Kit Item Number **** - 132205 DODGE - 614 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132429 DODGE - 10 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 955
A (inch) - 24.5
Overall Length (B) inch - 47.5
C (inch) - 17
Bolt to Bolt Minimum Distance (D min) inch - 41.875
Bolt to Bolt Maximum Distance (D max) inch - 38.125
E (inch) - 9
F-Bolt Diameter (inch) - 2
G (inch) - 4
H (inch) - 6
Overall Height (K) inch - 33.875
L (inch) - 17.75
Base to Center Height (M) inch - 16
N (inch) - 11
P (inch) - 31
Q (inch) - 2.875
R (inch) - 2.5
S (inch) - 3.125
T (inch) - 8.5
U (inch) - 5.5625
U1 (inch) - 2.5
U2 (inch) - 2.875
V (inch) - 6
V1 (inch) - 2
W (inch) - 19.8125 (±3/16)
X (inch) - 22.5
Y (inch) - 2.75
Z (inch) - 10.625
A1 (inch) - 1.25
B1 (inch) - 15.125
C1 (inch) - 0.375
D1 (inch) - 8.75

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

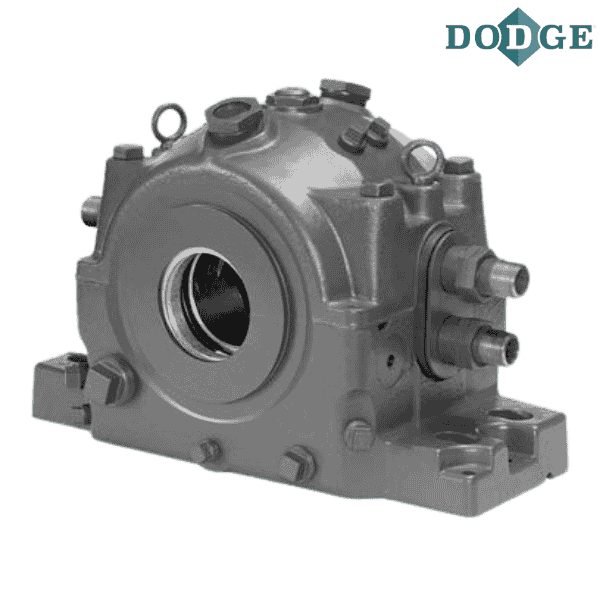

***** Images are for representation purposes only
