132474 DODGE - 3 7/16 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132474 DODGE - 3 7/16 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 3 7/16 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 3.4375
Weight of Expansion Pillow Block (lbs) - 190

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137101 DODGE - 3-7/16 RTL HI-CAPACITY THRUST PLATE KIT
Weight of Thrust Plate Kit (lbs) - 2.5
Split Thrust Collar Item Number * - 132151 DODGE - 3 7/16 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 2.6

Auxiliary Seal Kit Item Number ** - 132811 DODGE - 3 7/16 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 4.9
Housing End Cap Kit Item Number - 132542 DODGE - 3 7/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 5.3
Heater / Thermostat Item Number *** - 434721 DODGE - 175 W 110V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 1
Circulating Oil Inlet Kit Item Number **** - 132203 DODGE - 3757 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132420 DODGE - 3 7/16 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 47

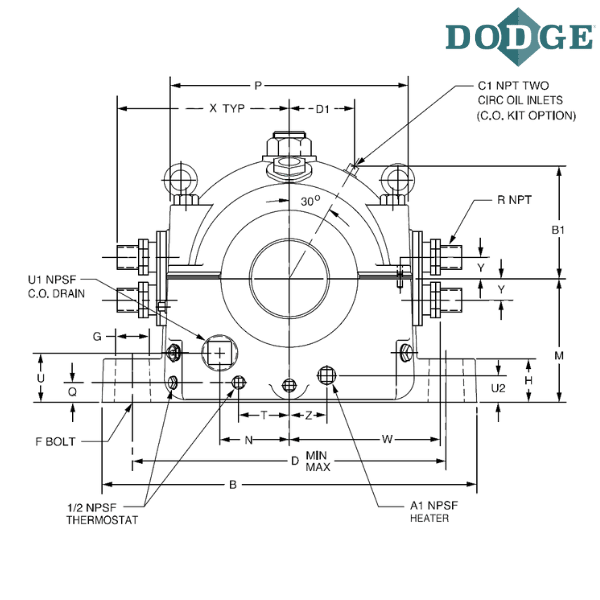

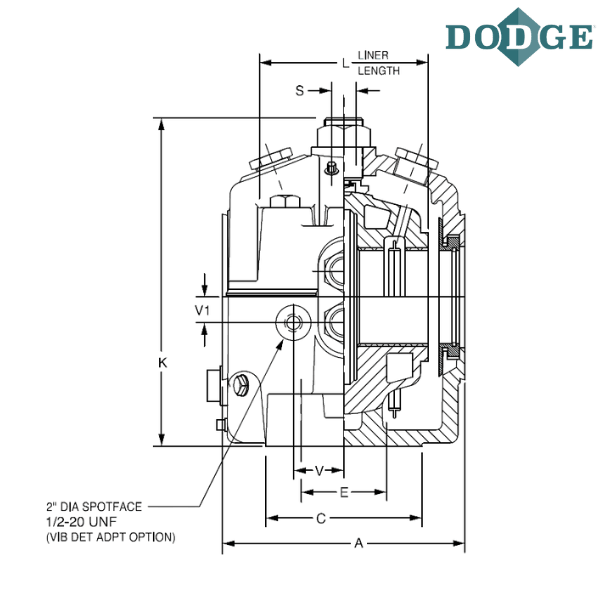

A (inch) - 10
Overall Length (B) inch - 18.75
C (inch) - 6
Bolt to Bolt Minimum Distance (D min) inch - 16.125
Bolt to Bolt Maximum Distance (D max) inch - 14.875
E (inch) - 3
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 2
Overall Height (K) inch - 12.5625
L (inch) - 6.75
Base to Center Height (M) inch - 5.875
N (inch) - 3.625
P (inch) - 11.625
Q (inch) - 1.125
R (inch) - 0.75
S (inch) - 1.375
U (inch) - 2.75
U1 (inch) - 1.5
U2 (inch) - 1.125
V (inch) - 3.25
V1 (inch) - 0.75
W (inch) - 7.625 (±3/16)
X (inch) - 8.75
Y (inch) - 1.25
Z (inch) - 3.5625
A1 (inch) - 0.75
B1 (inch) - 7.25
C1 (inch) - 0.25
D1 (inch) - 4.1875

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

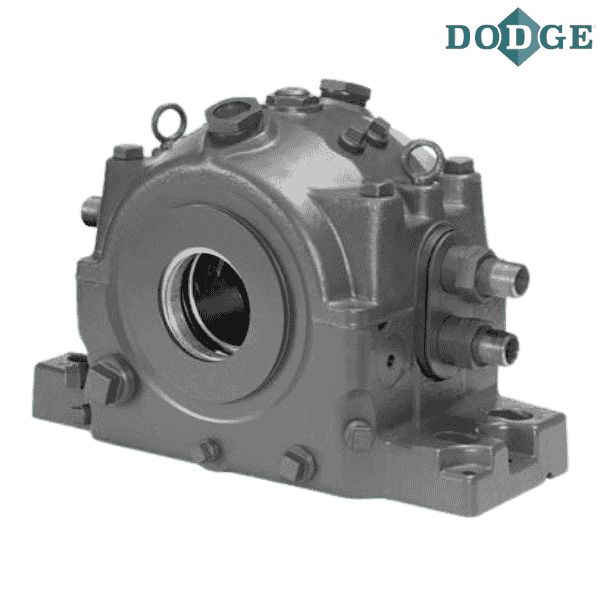

***** Images are for representation purposes only
