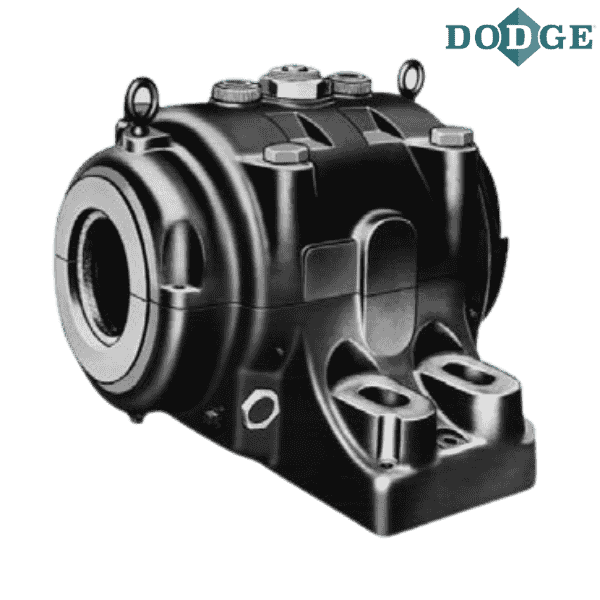

132767 DODGE - 10 STL PLAIN EXP PILLOW BLOCK

Brand - DODGE
Item Number - 132767 DODGE - 10 STL PLAIN EXP PILLOW BLOCK
Category - Plain Sleeveoil Pillow Block (R Series)
Description - 10 STL PLAIN EXP PILLOW BLOCK
Shaft Size (inch) - 10
Weight (lbs) - 1240
SSL Item Number - 132925 DODGE - 10 SSL PLAIN PILLOW BLOCK
Weight of SSL (lbs) - 1105
Split Thrust Collar Item Number * - 133960 DODGE - 10 PLAIN SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 52
Auxiliary Seal Kits Item Number ** - 132816 DODGE - 10 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 24.2
Housing End Cap Kits Item Number - 132565 DODGE - 10 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 16.4
Heater / Thermostat Item Number (120 Volt) - 434727 DODGE - 480W - 120V IMMERSION HTR/ T-STAT COMBO
Weight of Heater / Tharmostat (lbs) - 3.0
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number ** - 133995 DODGE - 10 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 1.6
Replacement Liner Assemblies Item Number - 133669 DODGE - 10 PLAIN LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 450
A (inch) - 27.75
Overall Length (B) inch - 34
C (inch) - 14.5
Bolt to Bolt Minimum Distance (D min) inch - 25.625
Bolt to Bolt Maximum Distance (D max) inch - 28.875
E (inch) - 7.5
F-Bolt Diameter (inch) - 1.75
G (inch) - 3.5
H (inch) - 5.875
Overall Height (J) inch - 22.375
K (inch) - 22.5
L (inch) - 16
Base to Center Height (M) inch - 10.75
N (inch) - 11
P (inch) - 19
S (inch) - 3
T (inch) - 5.25
U1 (inch) - 1.25
U2 (inch) - 1.25
V (inch) - 5
V1 (inch) - 1.5
W (inch) - 9.625
Z (inch) - 5.25
B1 (inch) - 12

Notes :
STL - Standard Series Loaded

* 2 Collars Required To Make A Non-Expansion STL Pillow Blocks
** One required per pillow block end
*** One required per pillow block

**** Images are for representation purposes only
