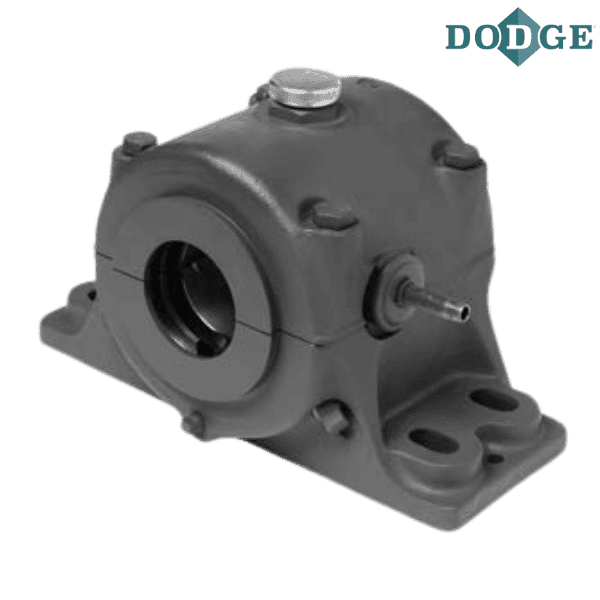

132986 DODGE - 2 3/16 STD PL-WC EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132986 DODGE - 2 3/16 STD PL-WC EXPANSION PILLOW BLOCK
Category - Plain-Water Cooled Standard and Short Series Sleeveoil Pillow Block (R Series)
Part Number - 132986
Description - 2 3/16 STD PL-WC EXPANSION PILLOW BLOCK
Shaft Size (inch) - 2.1875
Weight (lbs) - 47.8
Split Thrust Collar Item Number ** - 133260 DODGE - 2 3/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 1.8
Neoprene End Closure Item Number *** - 133983 DODGE - 2 3/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .12
Hose Kit Item Number - 133344 DODGE - SLEEVOIL FLEXIBLE WATER HOSE KIT
Weight of Hose Kit (lbs) - 0.5
Replacement PL-WC Liner Assemblies Item Number - 133585 DODGE - 2 3/16 PL-WC LINER ASSEMBLY
Weight of Replacement PL-WC Liner Assemblies (lbs) - 12
A (inch) - 9.25
Overall Length (B) inch - 12.5
Base Width (C) inch - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.125
Bolt to Bolt Maximum Distance (D max) inch - 9.875
E (inch) - ****
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.25
H (inch) - 2
K (inch) - 8
L (inch) - 4.5
Base to Center Height (M) inch - 3.75
P (inch) - 6.375
S (inch) - 0.875
U (inch) - 1.5
U1 (inch) - 0.5
V (inch) - 2.5
W (inch) - 0.25
X (inch) - 4.75

Notes :
STD - Standard Series
PL-WC - Plain/Water Cooled

** 2 Collars Required to Make A Non-Expansion Pillow Blocks
*** Used to close one end of pillow block. One required for sizes 1-7/16 thru 2-15/16. Two required for 3-7/16.
**** 2-bolt base

***** Images are for representation purposes only
