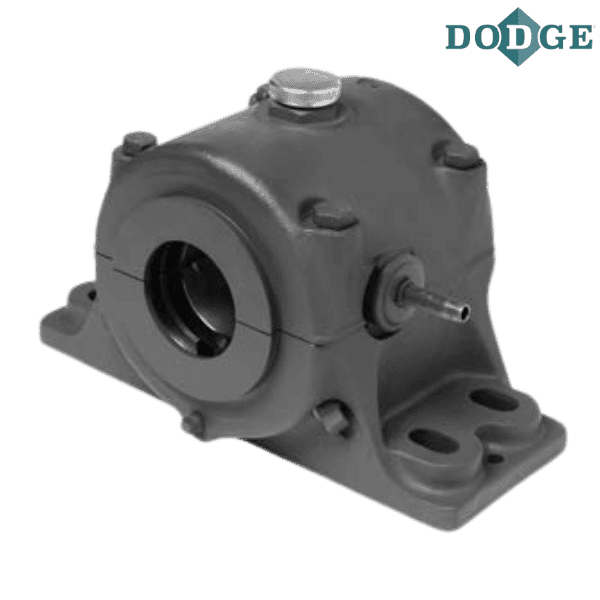

132987 DODGE - 2 7/16 STD PL-WC EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132987 DODGE - 2 7/16 STD PL-WC EXPANSION PILLOW BLOCK
Category - Plain-Water Cooled Standard and Short Series Sleeveoil Pillow Block (R Series)
Part Number - 132987
Description - 2 7/16 STD PL-WC EXPANSION PILLOW BLOCK
Shaft Size (inch) - 2.4375
Weight (lbs) - 65.5
Split Thrust Collar Item Number ** - 133265 DODGE - 2 7/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 2.7
Neoprene End Closure Item Number *** - 133984 DODGE - 2 7/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .12
Hose Kit Item Number - 133344 DODGE - SLEEVOIL FLEXIBLE WATER HOSE KIT
Weight of Hose Kit (lbs) - 0.5
Replacement PL-WC Liner Assemblies Item Number - 133586 DODGE - 2 7/16 PL-WC LINER ASSEMBLY
Weight of Replacement PL-WC Liner Assemblies (lbs) - 11.6

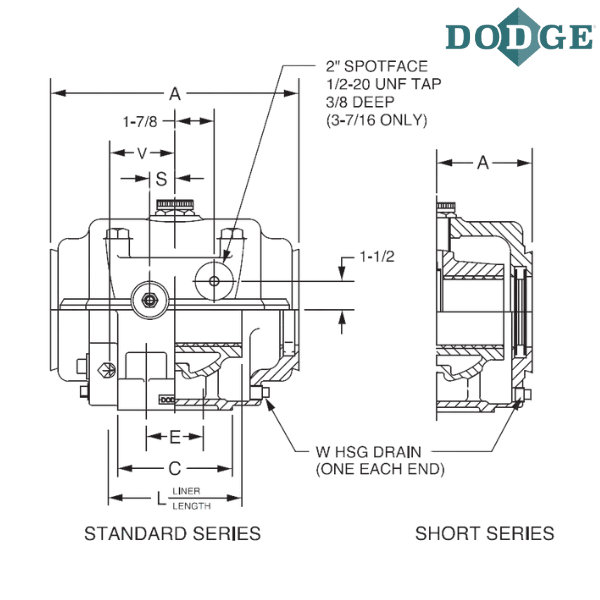

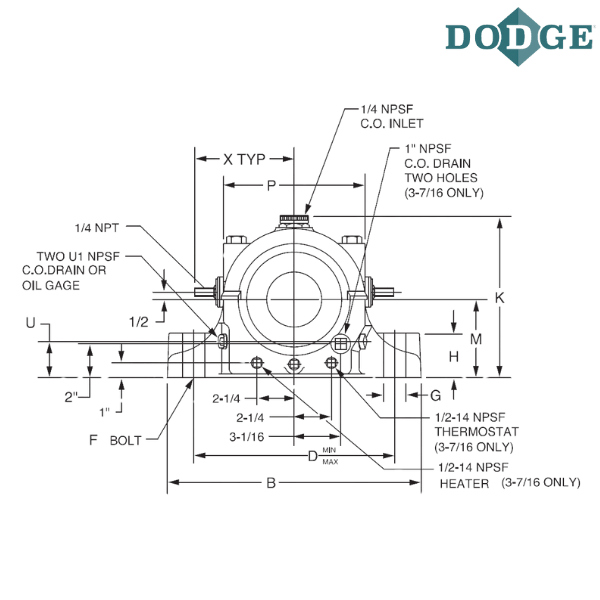

A (inch) - 10.5
Overall Length (B) inch - 13.5
Base Width (C) inch - 4
Bolt to Bolt Minimum Distance (D min) inch - 10.125
Bolt to Bolt Maximum Distance (D max) inch - 10.875
E (inch) - ****
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.25
H (inch) - 2.375
K (inch) - 8.75
L (inch) - 5
Base to Center Height (M) inch - 4.125
P (inch) - 7.125
S (inch) - 1.0625
U (inch) - 1.625
U1 (inch) - 0.5
V (inch) - 2.9375
W (inch) - 0.25
X (inch) - 4.75

Notes :
STD - Standard Series
PL-WC - Plain/Water Cooled

** 2 Collars Required to Make A Non-Expansion Pillow Blocks
*** Used to close one end of pillow block. One required for sizes 1-7/16 thru 2-15/16. Two required for 3-7/16.
**** 2-bolt base

***** Images are for representation purposes only
