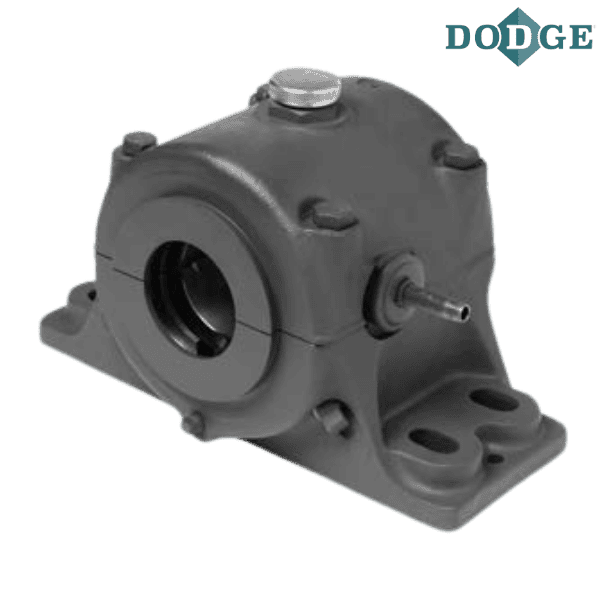

132991 DODGE - 2 15/16 SSH PL-WC PILLOW BLOCK

Brand - DODGE
Item Number - 132991 DODGE - 2 15/16 SSH PL-WC PILLOW BLOCK
Category - Plain-Water Cooled Standard and Short Series Sleeveoil Pillow Block (R Series)
Part Number - 132991 *
Description - 2 15/16 SSH PL-WC PILLOW BLOCK
Shaft Size (inch) - 2.9375
Weight (lbs) - 90
STD Item Number - 132989 DODGE - 2 15/16 STD PL-WC EXPANSION PILLOW BLOCK
Weight of STD Pillow Block (lbs) - 92.4
Split Thrust Collar Item Number ** - 133275 DODGE - 2 15/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 3.8
Neoprene End Closure Item Number *** - 133986 DODGE - 2 15/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .18
Hose Kit Item Number - 133344 DODGE - SLEEVOIL FLEXIBLE WATER HOSE KIT
Weight of Hose Kit (lbs) - 0.5
Replacement PL-WC Liner Assemblies Item Number - 132950* DODGE - 2 15/16 PL-WC LINER ASSEMBLY
Weight of Replacement PL-WC Liner Assemblies (lbs) - 22

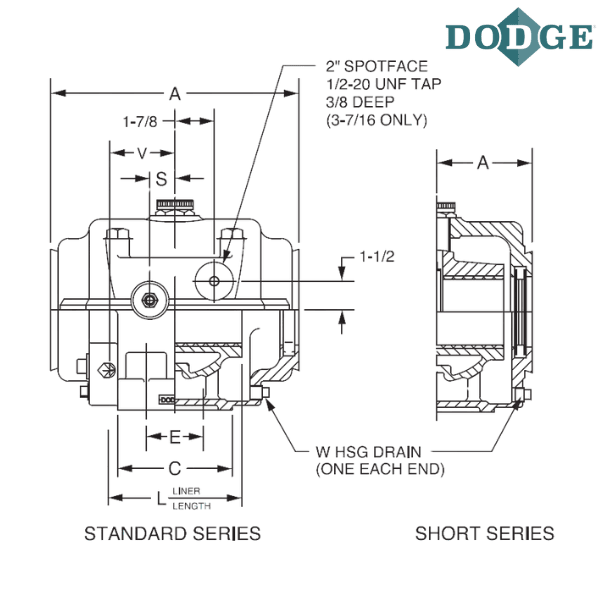

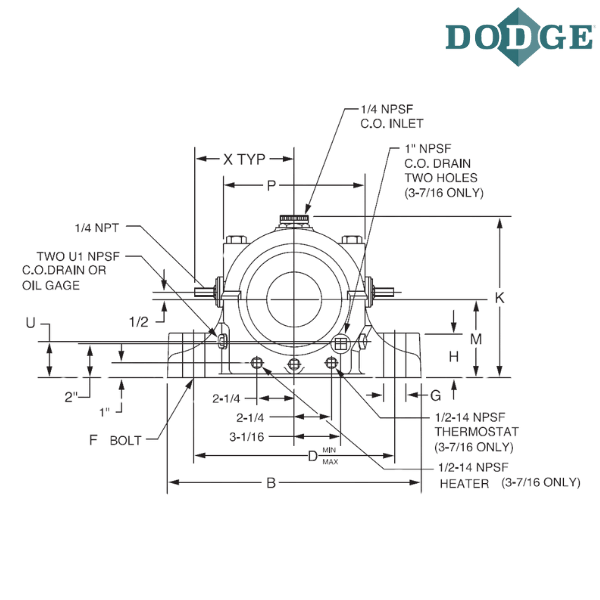

A (inch) - 8.75
Overall Length (B) inch - 15
Base Width (C) inch - 5.75
Bolt to Bolt Minimum Distance (D min) inch - 10.875
Bolt to Bolt Maximum Distance (D max) inch - 12.125
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 1.5
K (inch) - 9.625
L (inch) - 6
Base to Center Height (M) inch - 4.5625
P (inch) - 7.875
S (inch) - 1.125
U (inch) - 1.75
U1 (inch) - 0.5
V (inch) - 3.5625
W (inch) - 0.25
X (inch) - 5.125

Notes :
SSH - Short Series
PL-WC - Plain/Water Cooled

* Pillow block and liner are pre-drilled for thermocouple (2 places)
** 2 Collars Required to Make A Non-Expansion Pillow Blocks
*** Used to close one end of pillow block. One required for sizes 1-7/16 thru 2-15/16. Two required for 3-7/16.

***** Images are for representation purposes only
