133305 DODGE

Brand - DODGE
Item Number - 133305 DODGE
Category - XC Sleeveoil Pillow Block (R Series)
STL-XC Item Number - 132559 DODGE - 12 STL XC EXP PILLOW BLOCK
Weight of STL-XC (lbs) - 3300
Auxiliary Seal Kits Item Number * - 132819 DODGE - 12 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 40
Housing End Cap Kit Item Number - 132566 DODGE - 12 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 25
Heater / Thermostat Item Number (120 Volt) - 434729 DODGE - 740W - 120V IMMERSION HTR/ T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 4
Neoprene End Closure Item Number * - 133997 DODGE - 12 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 1.9
Liner Assemblies XC Item Number - 132597 DODGE - 12 XC LINER ASSEMBLY
Weight of Liner Assemblies XC (lbs) - 600

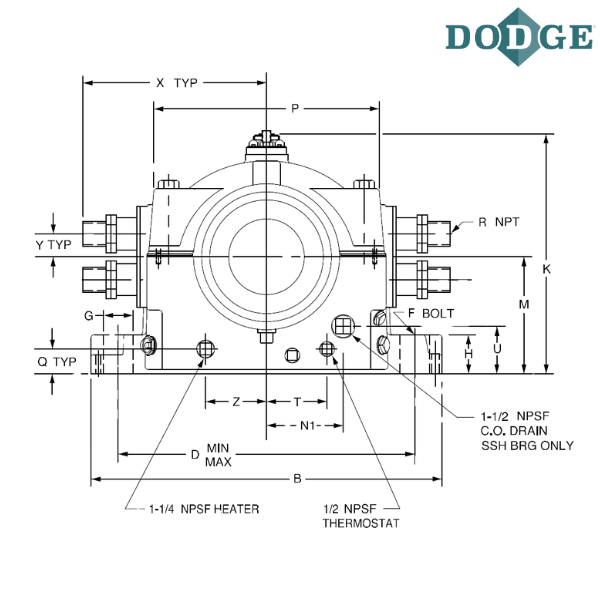

A (inch) - 34
Overall Length (B) inch - 46
C (inch) - 18
Bolt to Bolt Minimum Distance (D min) inch - 36.625
Bolt to Bolt Maximum Distance (D max) inch - 40.375
E (inch) - 10
F-Bolt Diameter (inch) - 2
G (inch) - 4.125
H (inch) - 7
J (inch) - 34.75
Overall Height (K) inch - 33.0625
L (inch) - 20
Base to Center Height (M) inch - 16
P (inch) - 28.75
R (inch) - 2
W (inch) - 12.0625
X (inch) - 20.25

* One required per pillow block end
** One required per pillow block

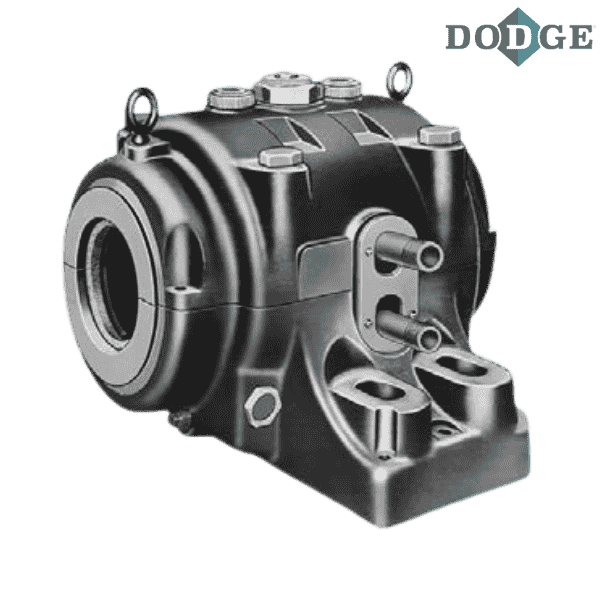

*** Images are for representation purposes only
