134194 DODGE - F&B-CC-112-DL

Brand - DODGE
Item Number - 134194 DODGE - F&B-CC-112-DL
Category - Ball Bearings (CC DL Fan and Blower Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.75
Description - F&B-CC-112-DL
Weight (lbs) - 31.87

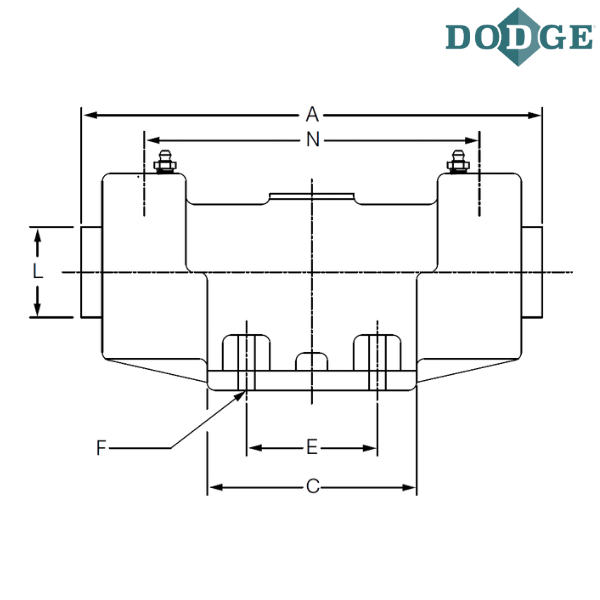

Length Through Bore (A) inch - 10.55

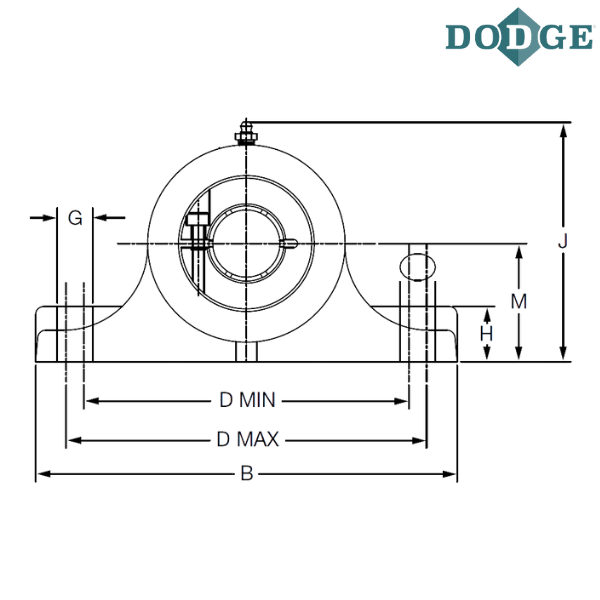

Overall Length (B) inch - 10
C (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 7.75
Bolt to Bolt Maximum Distance (D max) inch - 8.25
Bolt Width (E) inch - 3.5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.56
Overall Height (J) inch - 5.63
L (inch) - 2.99
Base to Center Height (M) inch - 3
Bearing Centers (BC) inch - 8.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
DL - Wide inner ring, normal duty, concentric clamp collar

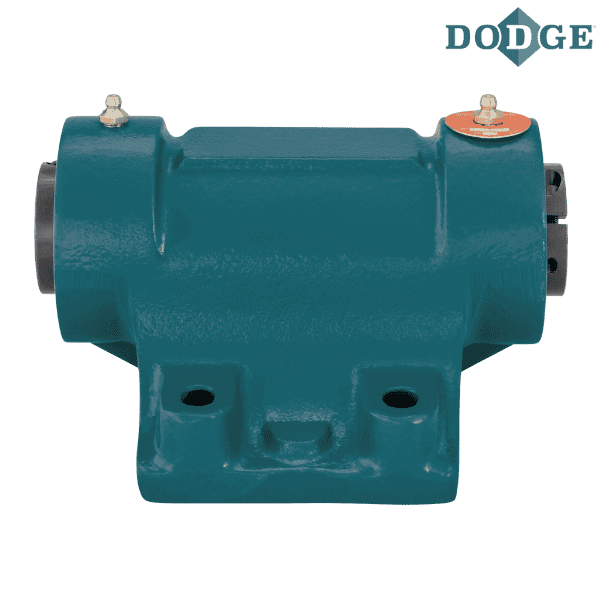

** Images are for representation purposes only
