134195 DODGE - F&B-CC-115-DL

Brand - DODGE
Item Number - 134195 DODGE - F&B-CC-115-DL
Category - Ball Bearings (CC DL Fan and Blower Pillow Blocks)
Series - 210
Shaft Size (inch) - 1.9375
Description - F&B-CC-115-DL
Weight (lbs) - 51.35

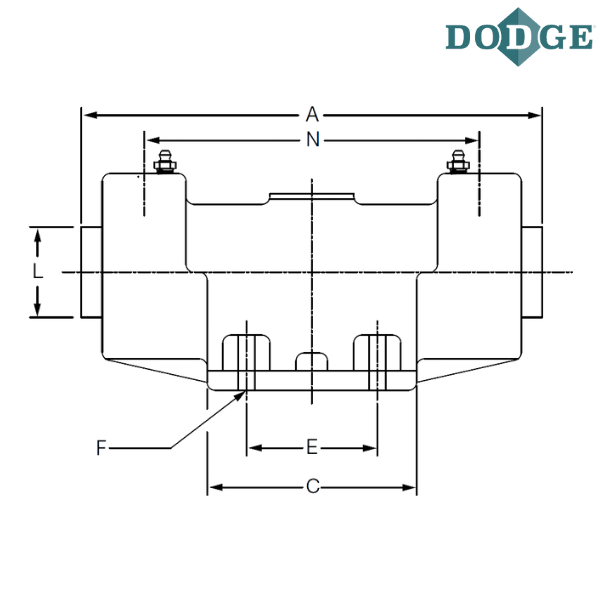

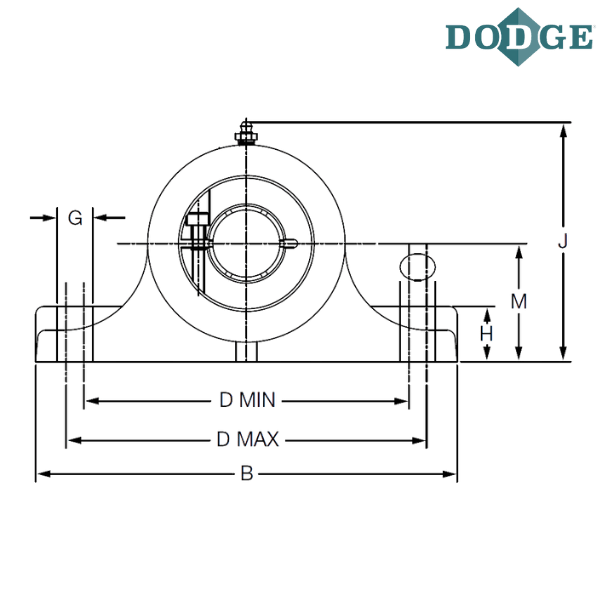

Length Through Bore (A) inch - 13.43
Overall Length (B) inch - 12
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 9
Bolt to Bolt Maximum Distance (D max) inch - 10
Bolt Width (E) inch - 4
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.13
H (inch) - 1.75
Overall Height (J) inch - 6.44
L (inch) - 3.24
Base to Center Height (M) inch - 3.5
Bearing Centers (BC) inch - 10.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
DL - Wide inner ring, normal duty, concentric clamp collar

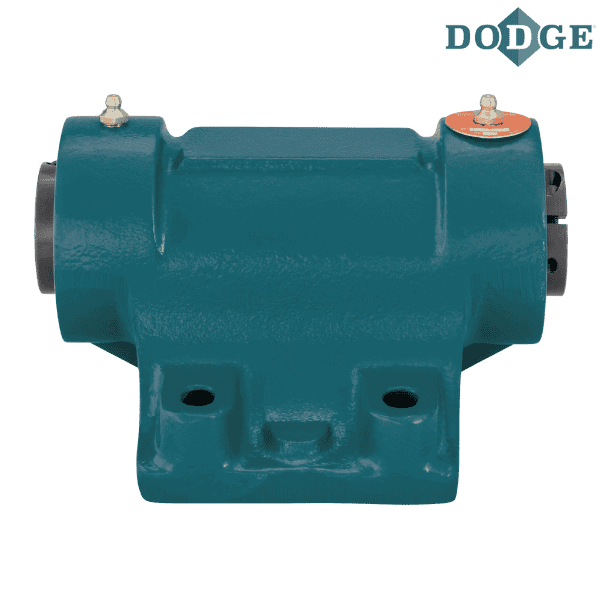

** Images are for representation purposes only
