134203 DODGE - 5 7/16 STL PLXC EXP PIL BLOCK

Brand - DODGE
Item Number - 134203 DODGE - 5 7/16 STL PLXC EXP PIL BLOCK
Category - Plain / Externally Cooled Standard and Short Series Sleeveoil Pillow Blocks (R Series)
Description - 5 7/16 STL PLXC EXP PIL BLOCK
Shaft Size (inch) - 5.4375
Weight (lbs) - 470
SSL Item Number - 134210 DODGE - 5 7/16 SSL PLXC PILLOW BLOCK
Weight of SSL Pillow Block (lbs) - 462
Split Thrust Collar Item Number * - 133294 DODGE - 5 7/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 12.3
Replacement Liner Assemblies Item Number (PL-XC) - 132955 DODGE - 5 7/16 PLXC LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 130
Replacement Liner Assemblies Item Number (WC) - 133593 DODGE - 5 7/16 WC REPL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 114
Auxiliary Seal Kits Item Number ** - 133932 DODGE - 5 7/16 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 12.4
Housing End Cap Kits Item Number - 132546 DODGE - 5 7/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 11.6
Heater / Thermostat Item Number (120 Volt) - 434721 DODGE - 175W-120V IMMERSION HEATER/T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 2.0
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number **** - 133991 DODGE - 5 7/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .6
Pipe Grommet Kits Item Number *** - 132193 DODGE - 4 15/16-5 7/16 R SERIES GRMT KIT
Weight of Pipe Grommet Kit (lbs) - 2.4

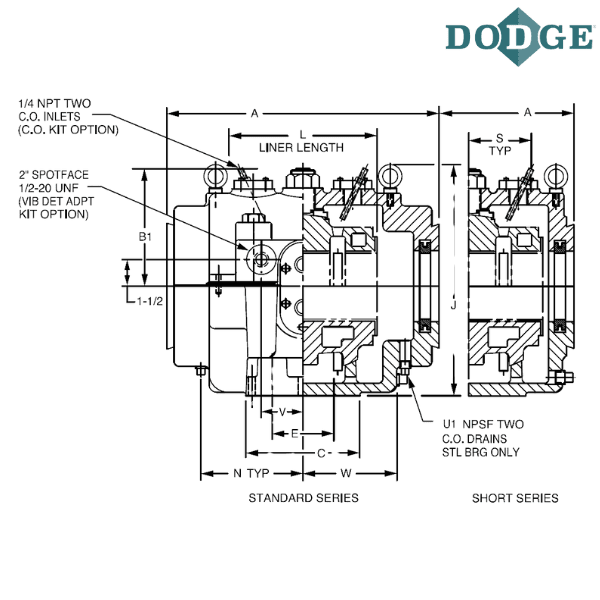

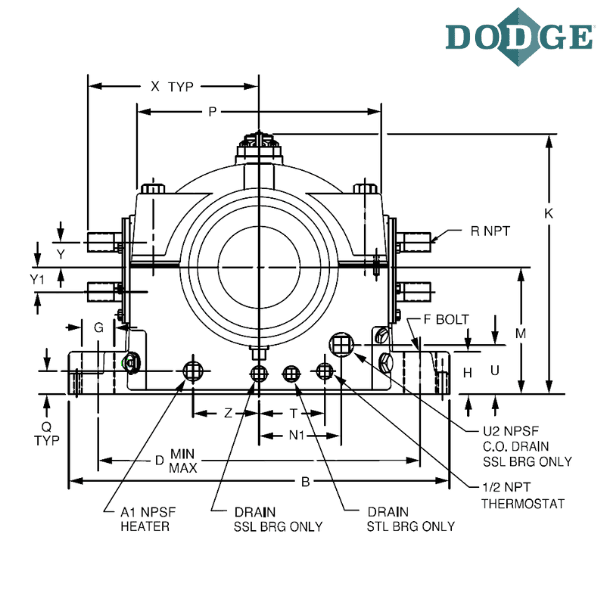

A (inch) - 19.75
Overall Length (B) inch - 24.5
C (inch) - 9.5
Bolt to Bolt Minimum Distance (D min) inch - 18.25
Bolt to Bolt Maximum Distance (D max) inch - 20.25
E (inch) - 5
F-Bolt Diameter (inch) - 1.125
G (inch) - 2.25
H (inch) - 3.75
Overall Height (J) inch - 17.125
K (inch) - 15.9375
L (inch) - 11
Base to Center Height (M) inch - 7.5
N (inch) - 7.625
P (inch) - 13.75
Q (inch) - 1.5625
T (inch) - 3.375
U (inch) - 3
U1 (inch) - 1
V (inch) - 3.5
W (inch) - 6.75
X (inch) - 10.375
Z (inch) - 3.375
A1 (inch) - 0.75
B1 (inch) - 8.75

Notes :
STL - Standard Series Loaded
PLXC - Plain/Externally Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block
**** Two required per 3-15/16 thru 4-15/16 sizes; three for 5-7/16 and larger

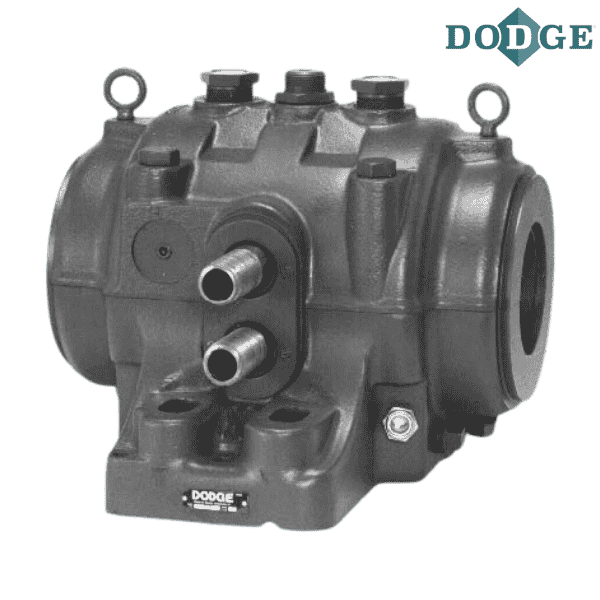

***** Images are for representation purposes only
