134504 DODGE - #8 RXT HOUSING ASSEMBLY

Brand - DODGE
Item Number - 134504 DODGE - #8 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Housing Part Number * - 134504
Housing Description - #8 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Size (inch) - 8
Compatible Shaft Sizes (inch) - 8, 9
Weight of the Housing (lbs) - 1091
S Liner Part Numbers - 134718, 134719
T Liner Item Numbers ** - 134518 DODGE - 8 RXT-T LINER ASSEMBLY, 134519 DODGE - 9 RXT-T LINER ASSEMBLY
Weight of Liner (lbs) - 353
Split Thrust Collar Kit Item Numbers *** - 134888 DODGE - 8 RXT-S THRUST COLLAR KIT, 134889 DODGE - 9 RXT-S THRUST COLLAR KIT
Recessed Shaft Split Thrust Collar Kit Part Numbers **** - 432165, 432278
Split Seal Ring Item Numbers ***** - 134872 DODGE - #8 8 RXT SEAL KIT, 134873 DODGE - #8 9 RXT SEAL KIT, 134874 DODGE - #8 12 RXT SEAL KIT
Compatible Shaft Sizes (inch) - 41160
Oil (Gal.) - 5.125

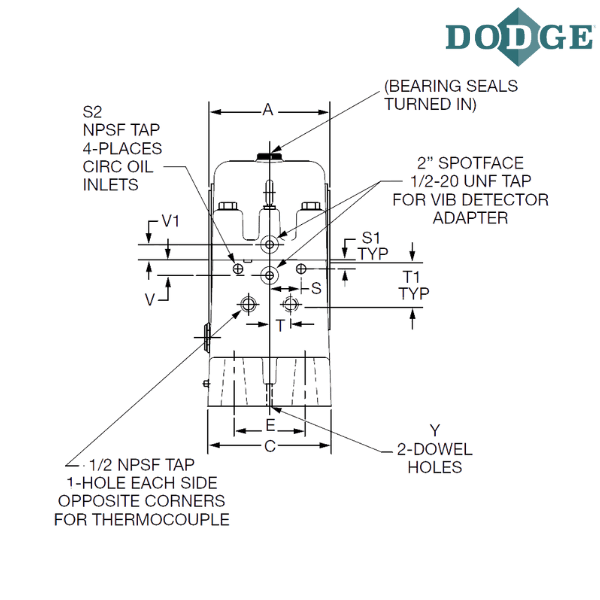

A (inch) - 14.25
Overall Length (B) inch - 41.75
C (inch) - 14.625
D (inch) - 36
E (inch) - 8
F-Bolt Diameter (inch) - 1.75
G (inch) - 2.875
H (inch) - 4.5

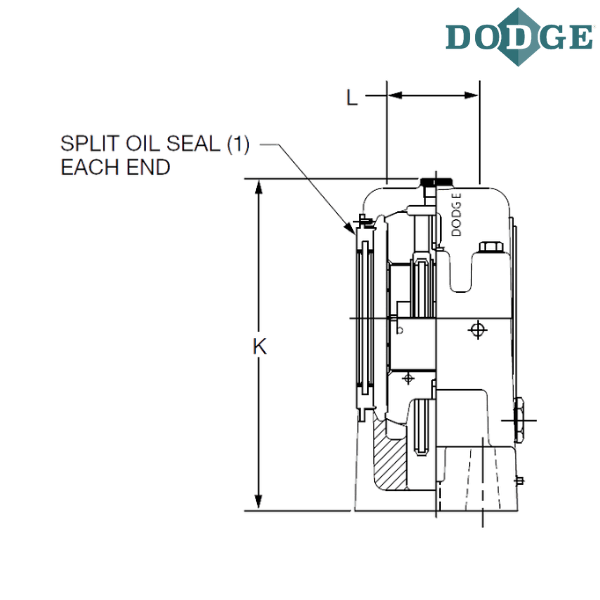

Overall Height (K) inch - 27.25
L (inch) - 8.5

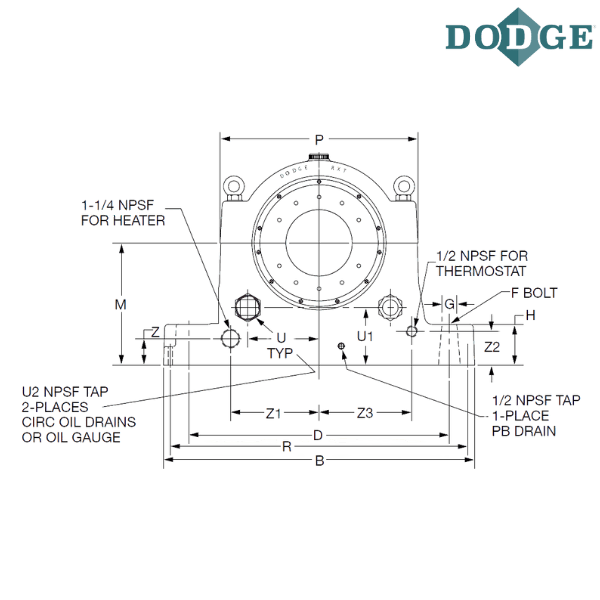

Base to Center Height (M) inch - 15.5
P (inch) - 26.75
R (inch) - 38
S (inch) - 3.625
S1 (inch) - 0.9375
S2 (inch) - 0.75
T (inch) - 2.375
T1 (inch) - 5
U (inch) - 10.125
U1 (inch) - 6.5
U2 (inch) - 2.5
V (inch) - 1.75
Y (inch) - 0.71875
Z (inch) - 3.125
Z1 (inch) - 11.5
Z2 (inch) - 4
Z3 (inch) - 11.75

* Housings include oil ring(s), sight gauge, pipe plugs, and eye bolts
** When ordering the T liner, integral thrust collars are required
*** For use with S liner only. Back-up shoulders are required
**** For use with S liner only. Recessed shaft grooves are required
***** One seal required for each end of housing

****** Images are for representation purposes only
