135102 DODGE - NSTU-SCM-100

Brand - DODGE
Item Number - 135102 DODGE - NSTU-SCM-100
Category - Setscrew Ball Bearings (SCM Medium Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1
Description - NSTU-SCM-100
Weight (lbs) - 3

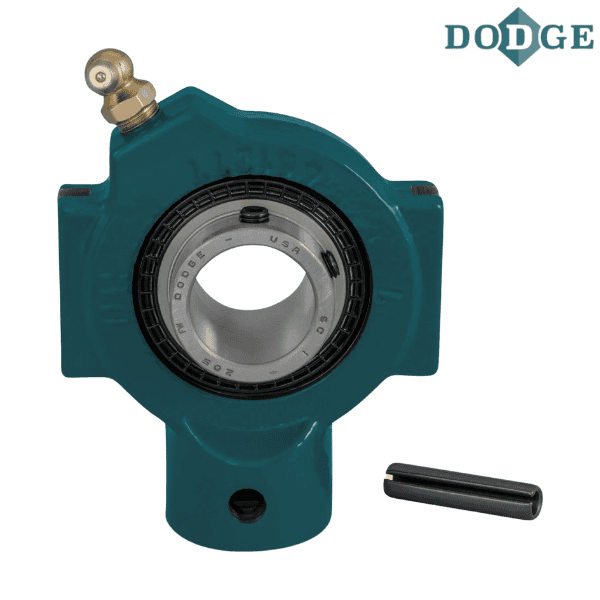

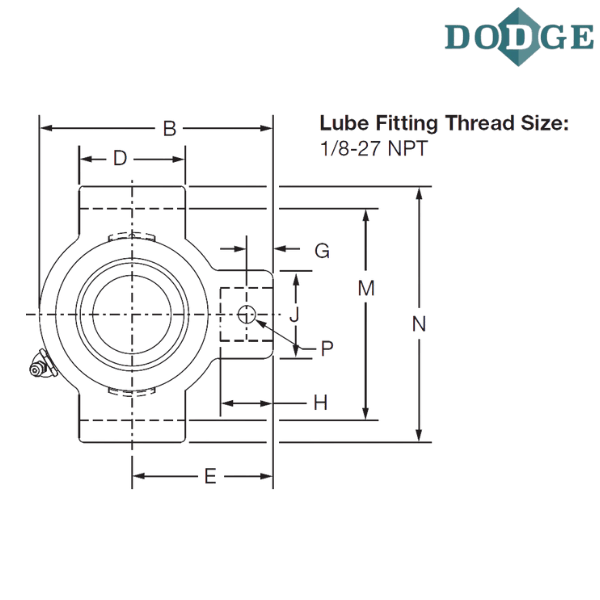

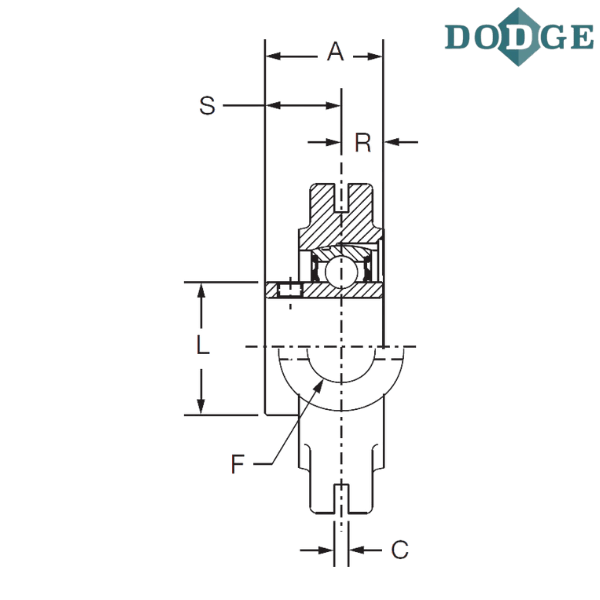

Take-Up Frame Number Reference - NS308
Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 4.31
C (inch) - 0.25
D (inch) - 2.5
E (inch) - 2.69
F-Bolt Diameter (inch) - 0.75
G (inch) - 0.5
H (inch) - 0.94
J (inch) - 1.38
L (inch) - 1.57
M (inch) - 3.510/3.480
Overall Width (N) inch - 4.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.58
S (inch) - 0.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking

** Images are for representation purposes only
