Description
Brand - DODGE
Item Number - 136074 DODGE - TP-GM-215
Category - Setscrew Ball Bearings (Type GM Medium Duty Top Angle Take-Up Bearings)
Series - 216
Shaft Size (inch) - 2.9375
Description - TP-GM-215
Weight (lbs) - 29.8
Frame Size - TP50

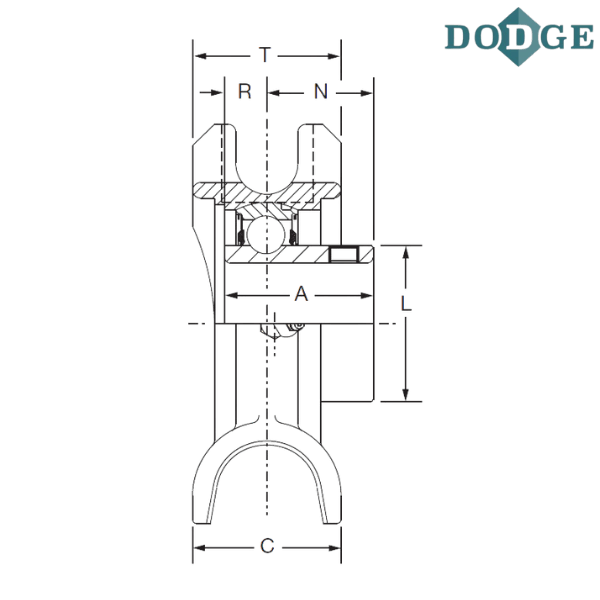

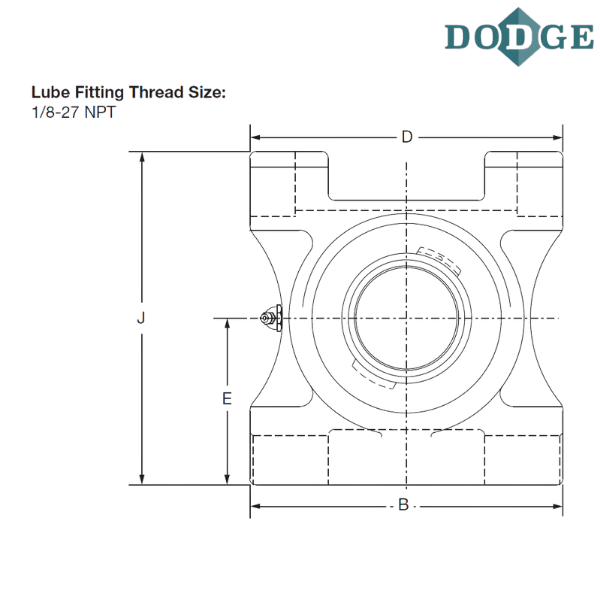

Length Through Bore (A) inch - 2.38
B (inch) - 9.50
C (inch) - 2.75
D (inch) - 9.00
E (inch) - 4.50
J (inch) - 9.63
L (inch) - 3.83
N (inch) - 1.41
R (inch) - 0.97
T (inch) - 3.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up

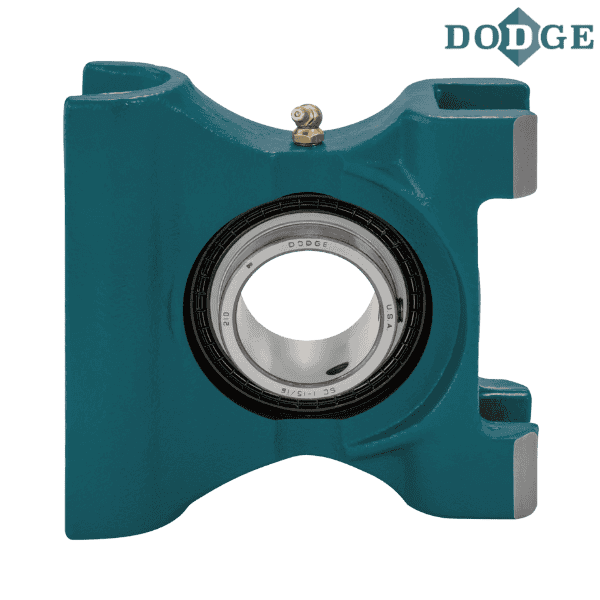

** Images are for representation purposes only
