136124 DODGE - NSTU-GT-112

Brand - DODGE
Item Number - 136124 DODGE - NSTU-GT-112
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - NSTU-GT-112
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136215
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136533
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-112-D
Weight (lbs) - 4.7
Take-Up Frame Size - NS400

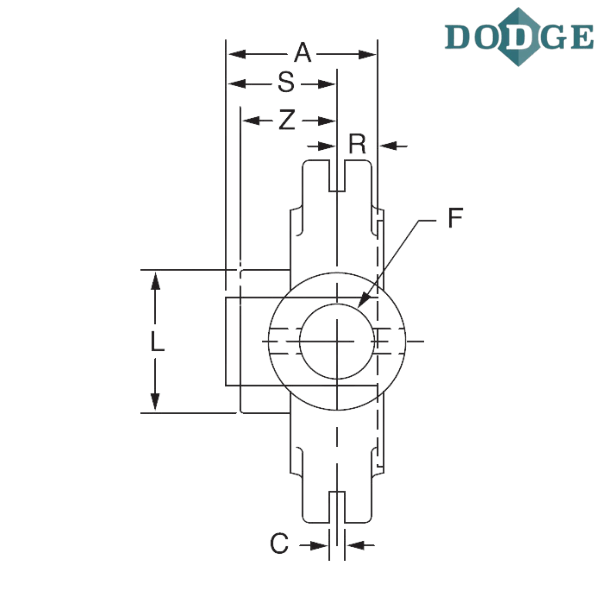

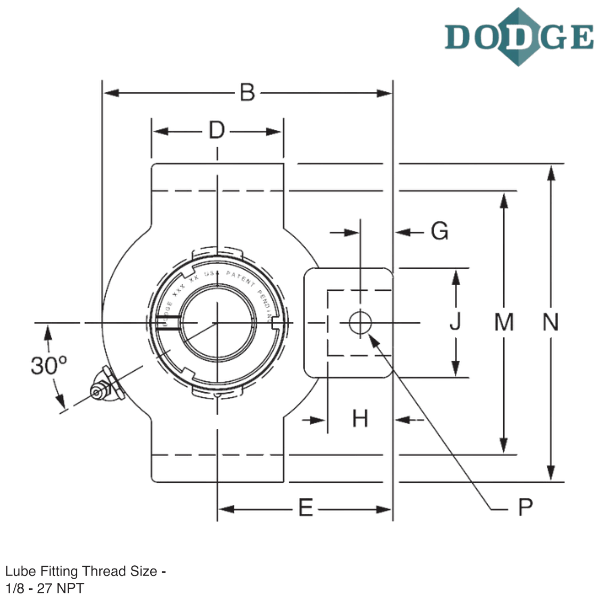

Length Through Bore (A) inch - 1.85
Overall Length (B) inch - 5.44
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.72
H (inch) - 1.22
J (inch) - 1.63
L (inch) - 2.86
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.62
S (inch) - 1.23
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

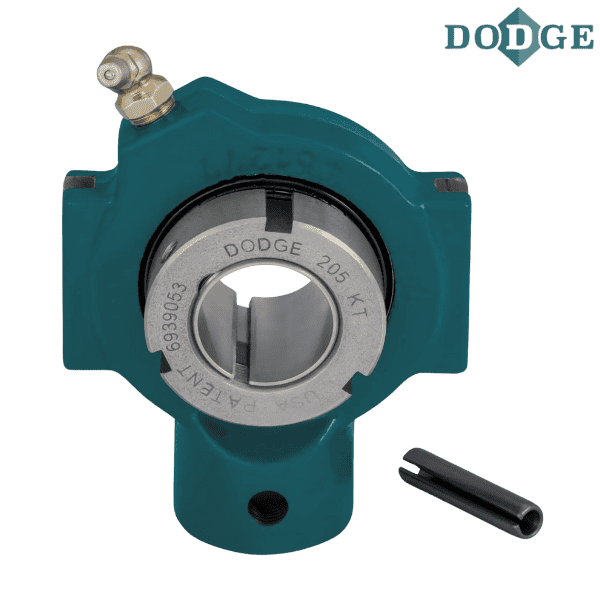

** Images are for representation purposes only
