136128 DODGE - NSTU-GT-204

Brand - DODGE
Item Number - 136128 DODGE - NSTU-GT-204
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 211
Shaft Size (inch) - 2.25
Description - NSTU-GT-204
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136217
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136537
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-204-D
Weight (lbs) - 6.5
Take-Up Frame Size - NS407

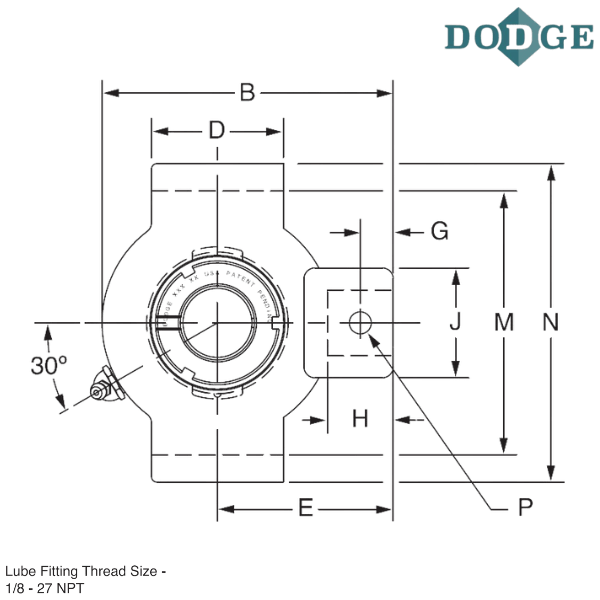

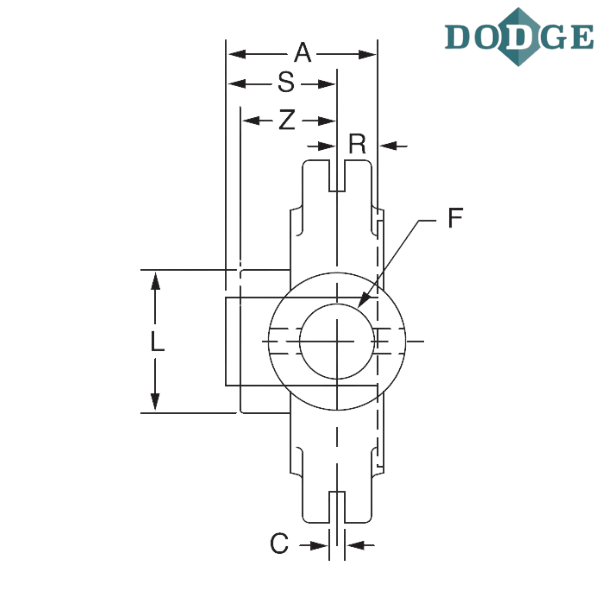

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 6.13
C (inch) - 0.313
D (inch) - 3.5
E (inch) - 3.63
F (Screw Diameter) inch - 1
G (inch) - 0.69
H (inch) - 1.28
J (inch) - 1.75
L (inch) - 3.43
M (inch) - 4.448/4.418
Overall Width (N) inch - 5.38
Pin Diameter (P) inch - 0.44
R (inch) - 0.67
S (inch) - 1.26
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

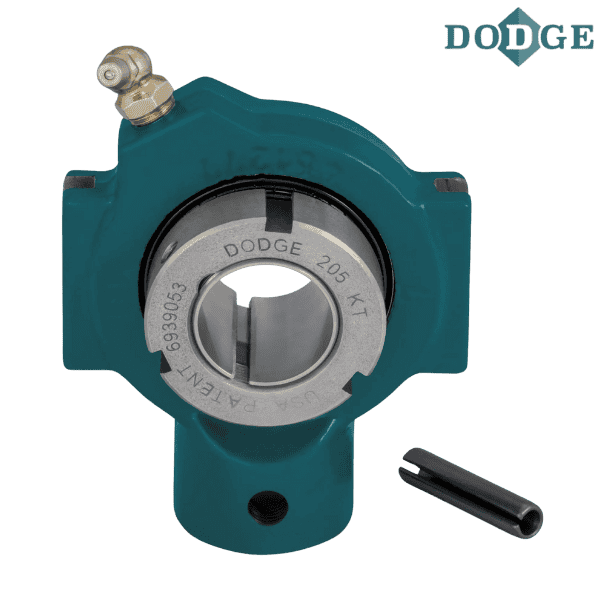

** Images are for representation purposes only
