136132 DODGE - WSTU-GT-015

Brand - DODGE
Item Number - 136132 DODGE - WSTU-GT-015
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - WSTU-GT-015
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136220
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136523
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-015-D
Weight (lbs) - 2.1
Take- Up Frame Size - WS300

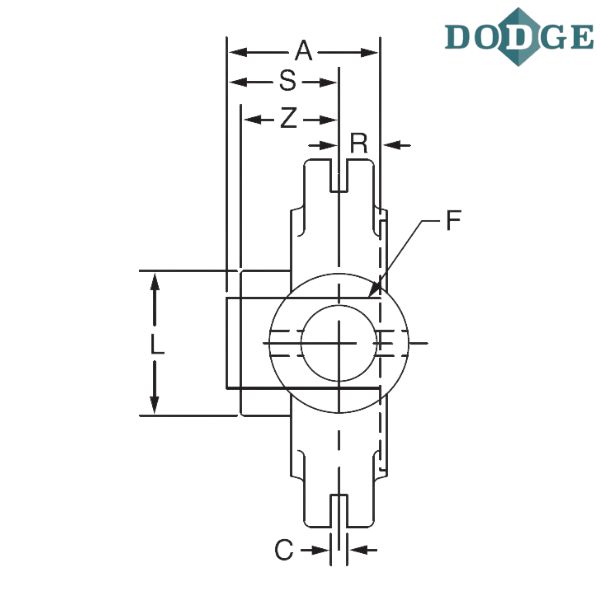

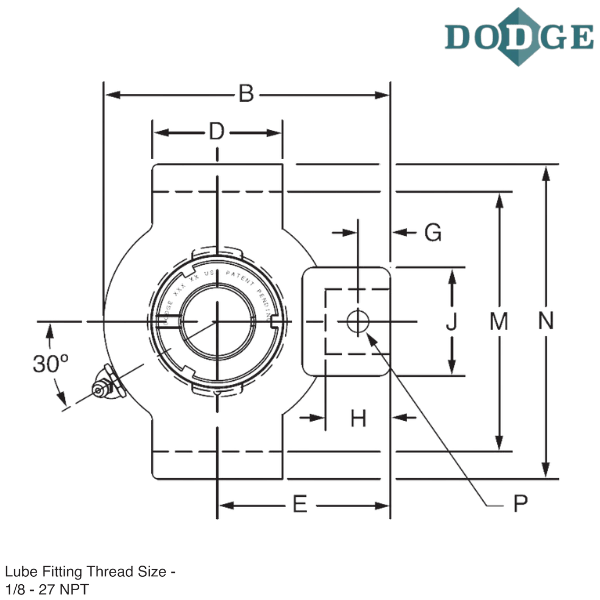

Length Through Bore (A) inch - 1.46
Overall Length (B) inch - 3.81
C (inch) - 0.531
D (inch) - 2
E (inch) - 2.44
F (Screw Diameter) inch - 0.625
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2
K (inch) - 1.31
L (inch) - 1.8
M (inch) - 2.985/3.015
Overall Width (N) inch - 3.63
R (inch) - 0.48
S (inch) - 0.98
Thickness (T) inch - 1.38
Z (inch) - 1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

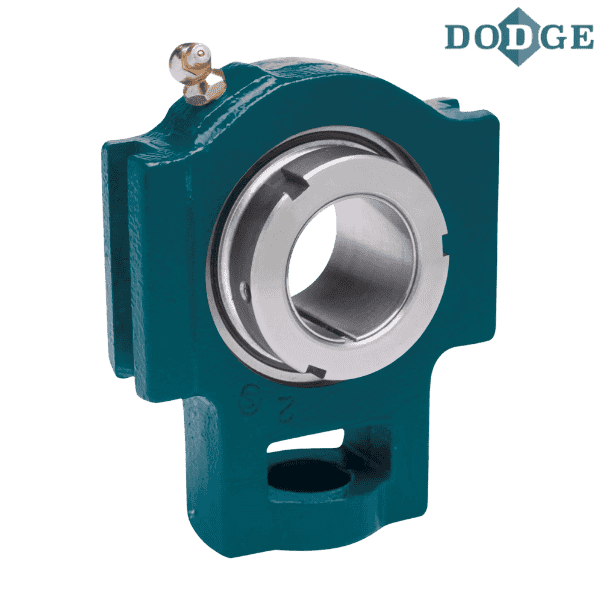

** Images are for representation purposes only
