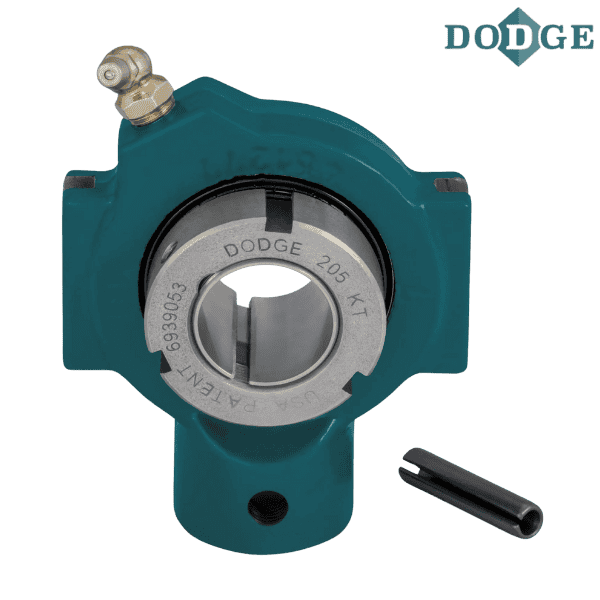

136159 DODGE - NSTU-GTM-012

Brand - DODGE
Item Number - 136159 DODGE - NSTU-GTM-012
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Narrow Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.75
Shaft Size (mm) - 19.05
Description - NSTU-GTM-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136211
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136597
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-05-012-D
Weight (lbs) - 1.7
Take-Up Frame Size - NS210

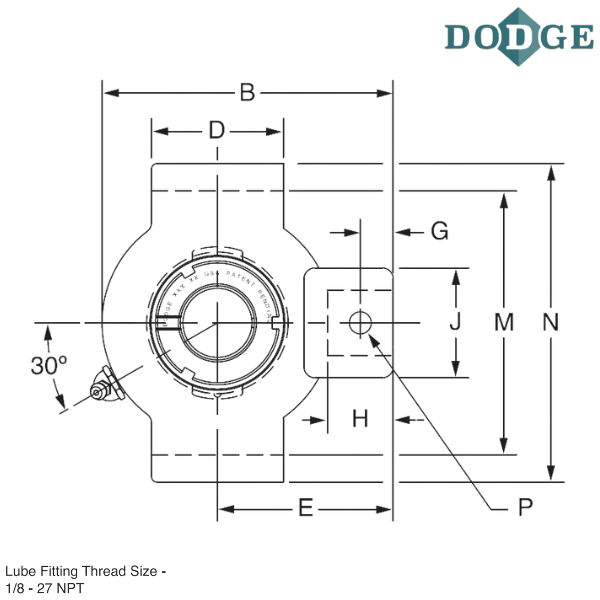

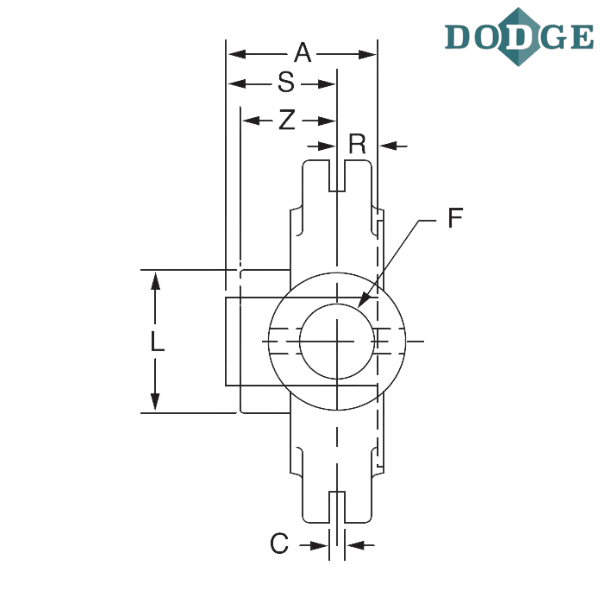

Length Through Bore (A) inch - 1.46
A (mm) - 37.1
Overall Length (B) inch - 3.56
B (mm) - 90.4
C (inch) - 0.25
C (mm) - 6.35
D (inch) - 1.5
D (mm) - 38.1
E (inch) - 2.19
E (mm) - 55.6
F (Screw Diameter) inch - 0.75
Screw Diameter (F) mm - 19.1
G (inch) - 0.44
G (mm) - 11.2
H (inch) - 0.88
H (mm) - 22.4
J (inch) - 1.38
J (mm) - 35.1
L (inch) - 1.8
L (mm) - 45.7
M (inch) - 2.635/2.605
M (mm) - 66.93/66.17
Overall Width (N) inch - 3.13
N (mm) - 79.5
Pin Diameter (P) inch - 0.32
Pin Diameter (P) mm - 8.1
R (inch) - 0.48
R (mm) - 12.2
S (inch) - 0.98
S (mm) - 24.9
Z (inch) - 1
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
