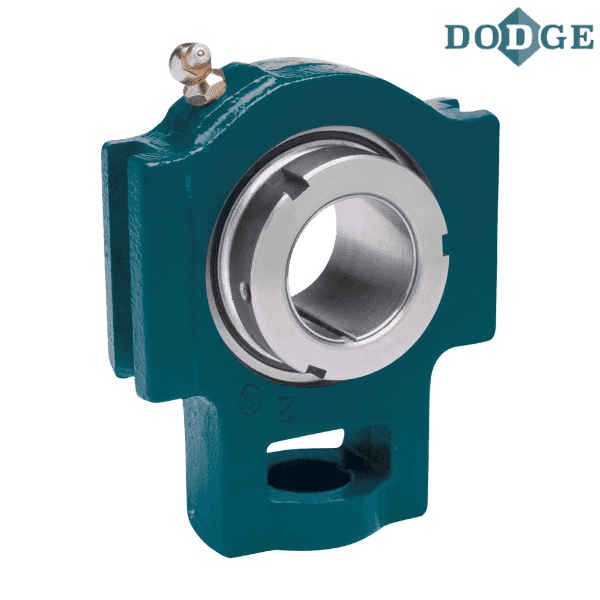

136170 DODGE - WSTU-GTM-012

Brand - DODGE
Item Number - 136170 DODGE - WSTU-GTM-012
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.75
Shaft Size (mm) - 19.05
Description - WSTU-GTM-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136220
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136597
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-05-012-D
Weight (lbs) - 2.7
Take- Up Frame Size - WS300

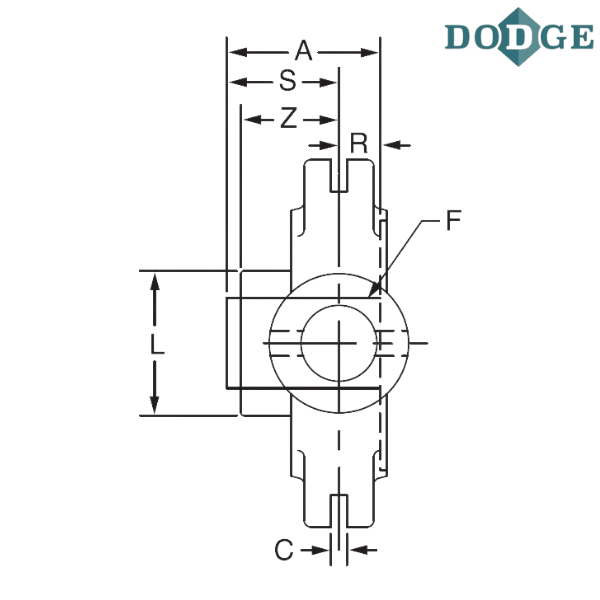

Length Through Bore (A) inch - 1.46
A (mm) - 37.1

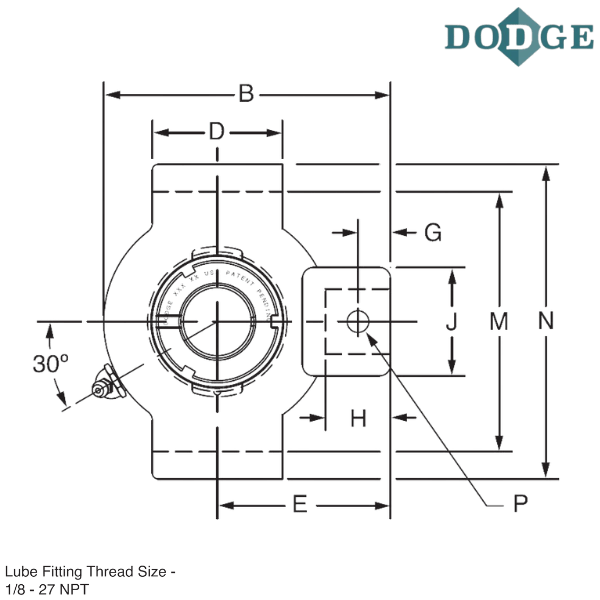

Overall Length (B) inch - 3.81
B (mm) - 96.8
C (inch) - 0.531
C (mm) - 13.49
D (inch) - 2
D (mm) - 50.8
E (inch) - 2.44
E (mm) - 62
F (Screw Diameter) inch - 0.625
Screw Diameter (F) mm - 15.9
G (inch) - 0.38
G (mm) - 9.7
H (inch) - 0.63
H (mm) - 16
J (inch) - 2
J (mm) - 50.8
K (inch) - 1.31
K (mm) - 33.3
L (inch) - 1.8
L (mm) - 45.7
M (inch) - 2.985/3.015
M (mm) - 75.82/76.58
Overall Width (N) inch - 3.63
N (mm) - 92.2
R (inch) - 0.48
R (mm) - 12.2
S (inch) - 0.98
S (mm) - 24.9
Thickness (T) inch - 1.38
T (mm) - 35.1
Z (inch) - 1
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
