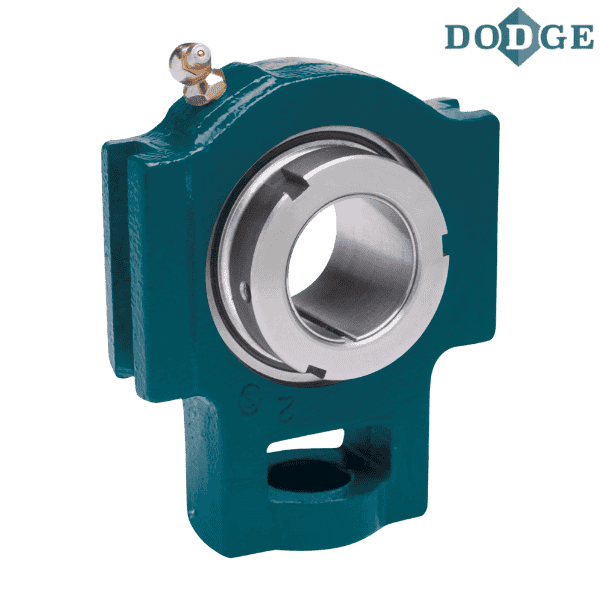

136172 DODGE - WSTU-GTM-103

Brand - DODGE
Item Number - 136172 DODGE - WSTU-GTM-103
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 207
Shaft Size (inch) - 1.1875
Description - WSTU-GTM-103
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136222
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136542
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-07-103-D
Weight (lbs) - 5.1
Take- Up Frame Size - WS308

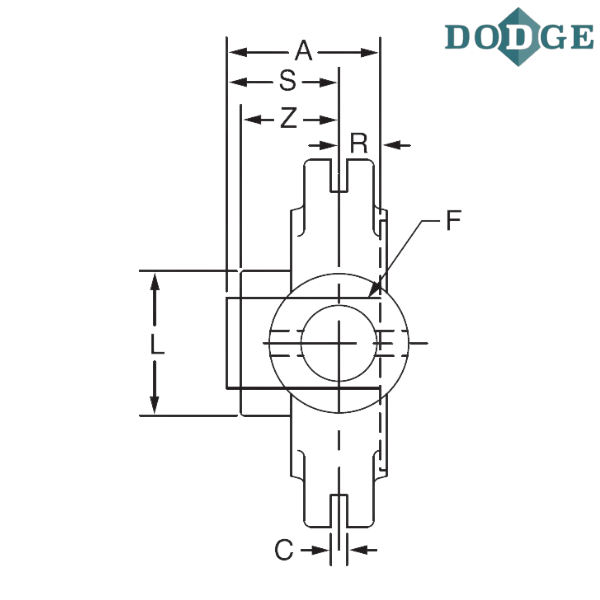

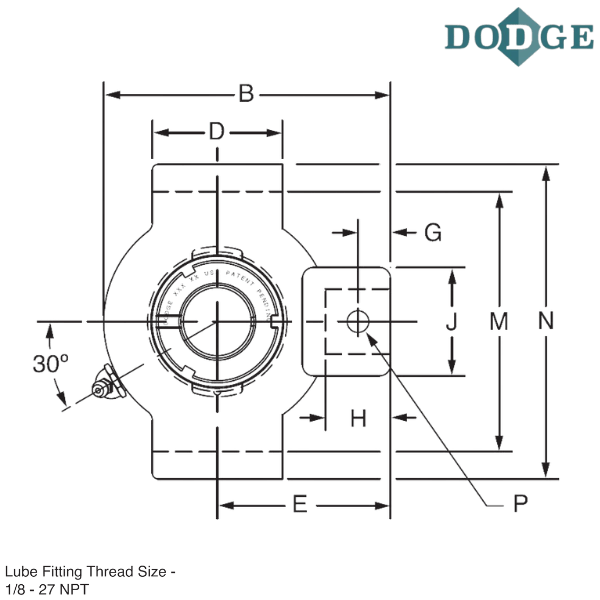

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 4.87
C (inch) - 0.531
D (inch) - 2.5
E (inch) - 3.06
F (Screw Diameter) inch - 0.75
G (inch) - 0.5
H (inch) - 0.63
J (inch) - 2.5
K (inch) - 1.44
L (inch) - 2.38
M (inch) - 3.480/3.510
Overall Width (N) inch - 4.13
R (inch) - 0.54
S (inch) - 1.08
Thickness (T) inch - 1.63
Z (inch) - 1.14
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
