136183 DODGE - WSTU-GTM-211

Brand - DODGE
Item Number - 136183 DODGE - WSTU-GTM-211
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 215
Shaft Size (inch) - 2.6875
Description - WSTU-GTM-211
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136229
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-15
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136549
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-15-211-D
Weight (lbs) - 20.2
Take- Up Frame Size - WS515

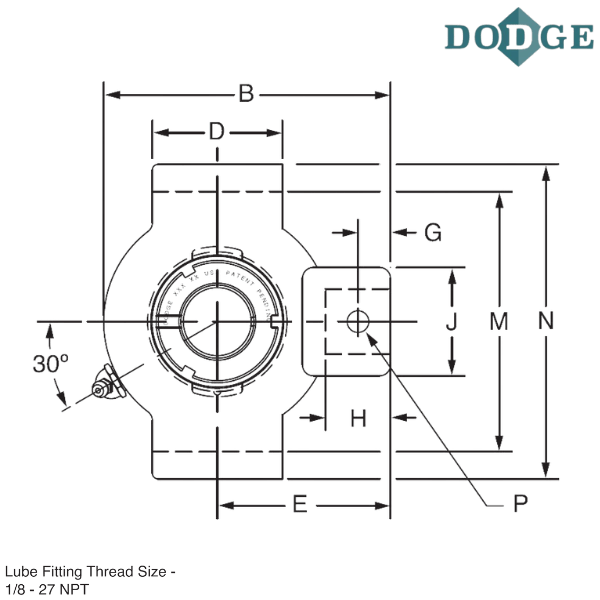

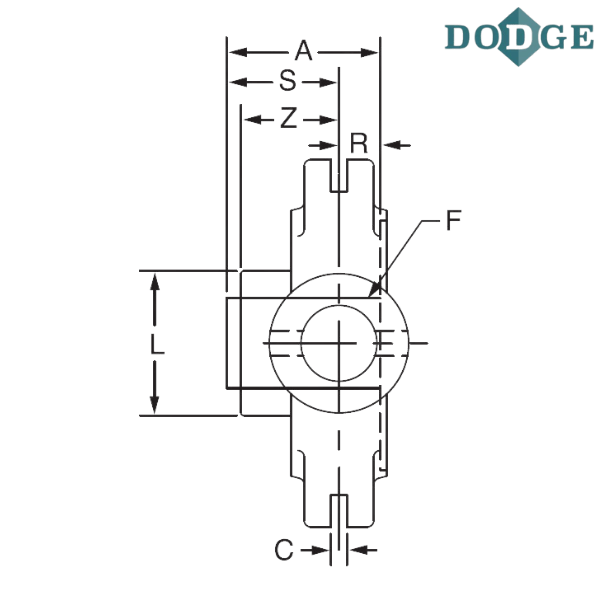

Length Through Bore (A) inch - 2.46
Overall Length (B) inch - 9.13
C (inch) - 1.063
D (inch) - 4.75
E (inch) - 5.5
F (Screw Diameter) inch - 1.5
G (inch) - 0.81
H (inch) - 1.25
J (inch) - 4.38
K (inch) - 2.75
L (inch) - 4.44
M (inch) - 5.923/5.953
Overall Width (N) inch - 6.69
R (inch) - 0.86
S (inch) - 1.6
Thickness (T) inch - 2.75
Z (inch) - 1.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

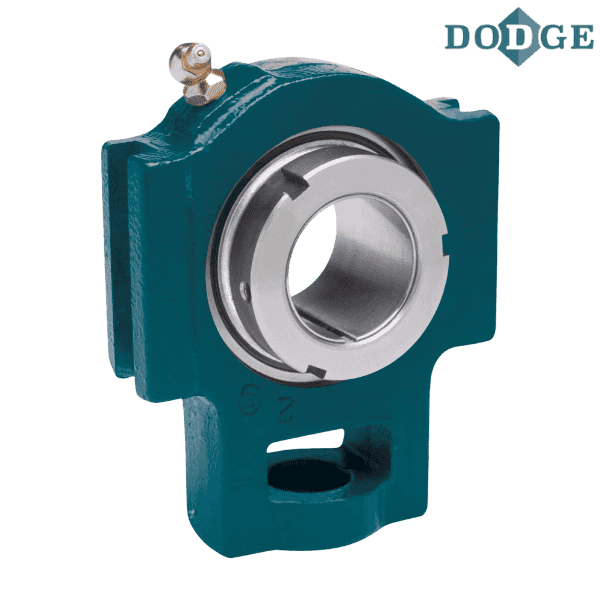

** Images are for representation purposes only
