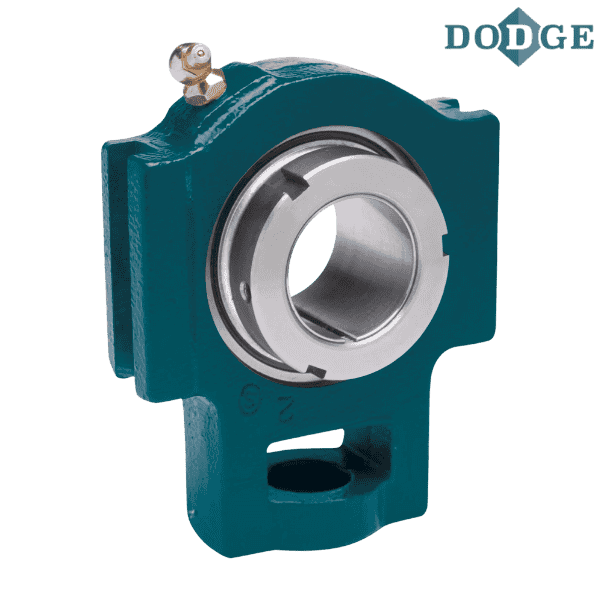

136184 DODGE - WSTU-GTM-215

Brand - DODGE
Item Number - 136184 DODGE - WSTU-GTM-215
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 216
Shaft Size (inch) - 2.9375
Description - WSTU-GTM-215
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136230
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136550
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-215-D
Weight (lbs) - 22.9
Take- Up Frame Size - WS608

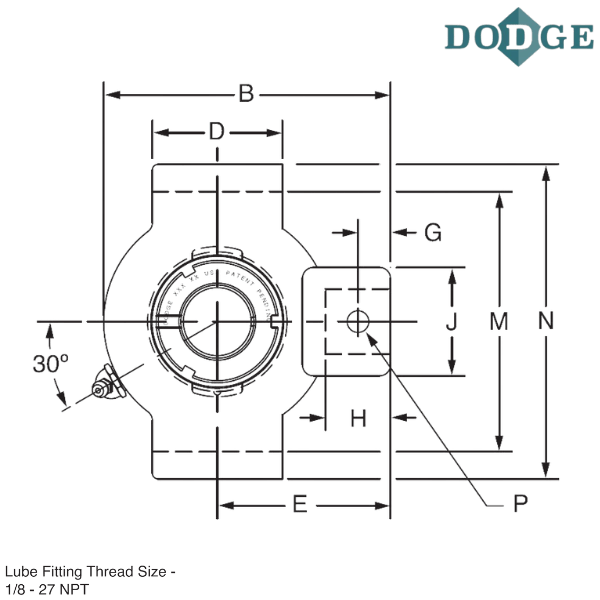

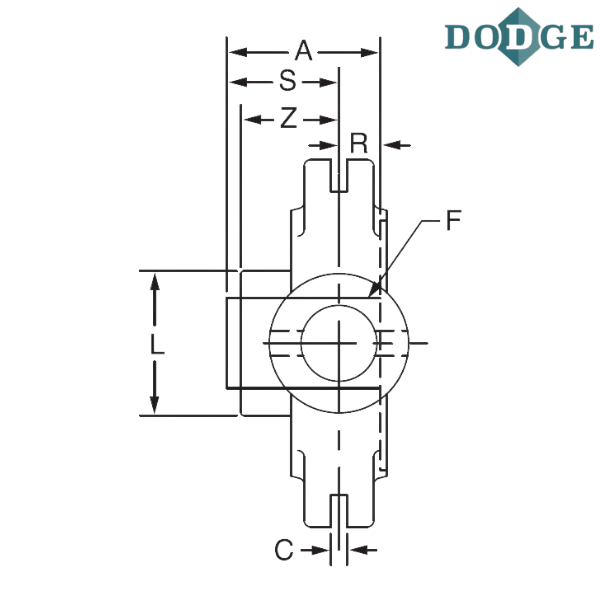

Length Through Bore (A) inch - 2.7
Overall Length (B) inch - 9.13
C (inch) - 1.063
D (inch) - 4.75
E (inch) - 2.38
F (Screw Diameter) inch - 1.5
G (inch) - 0.81
H (inch) - 1.25
J (inch) - 4.38
K (inch) - 2.75
L (inch) - 4.69
M (inch) - 6.485/6.515
Overall Width (N) inch - 7.25
R (inch) - 0.89
S (inch) - 1.81
Thickness (T) inch - 2.75
Z (inch) - 1.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
