136190 DODGE - TP-GTM-203

Brand - DODGE
Item Number - 136190 DODGE - TP-GTM-203
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Top Angle Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.1875
Description - TP-GTM-203
Part Number (Unit without Adapter and Nut) - 136233
Description (Unit without Adapter and Nut) - TP-GT-12
Part Number (Adapter and Nut Assembly) - 136546
Description (Adapter and Nut Assembly) - AN-GTM-12-203-D
Weight (lbs) - 17.4
Take-Up Frame Size - TP30

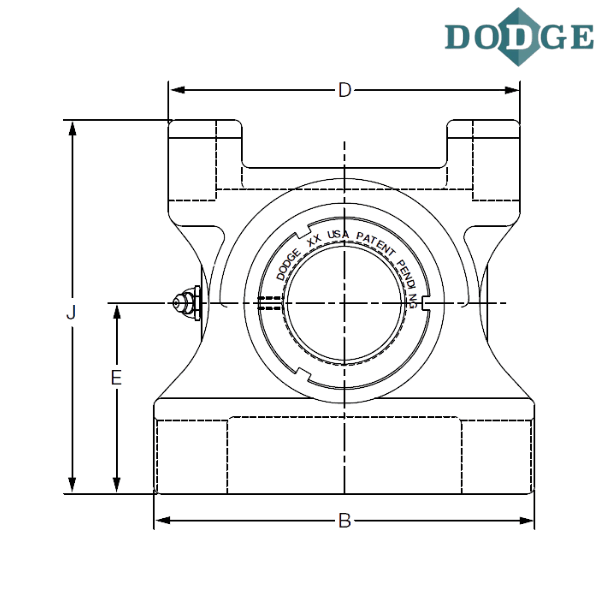

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 7.5
Thickness (C) inch - 2.75
D (inch) - 7
E (inch) - 3.5
Overall Width (J) inch - 7.44
L (inch) - 3.69
R (inch) - 0.73
S (inch) - 1.39
T (inch) - 2.75
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

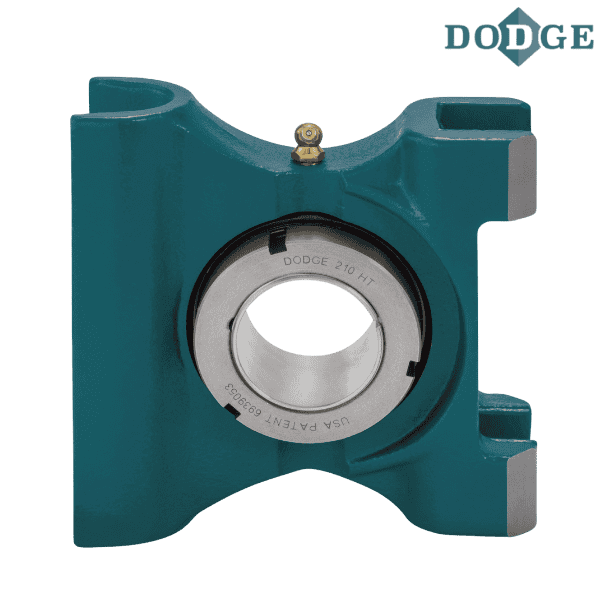

** Images are for representation purposes only
