136240 DODGE - NSTU-GT-30M

Brand - DODGE
Item Number - 136240 DODGE - NSTU-GT-30M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 30
Description - NSTU-GT-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136212
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136555
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 1.2
Take-Up Frame Size - NS308

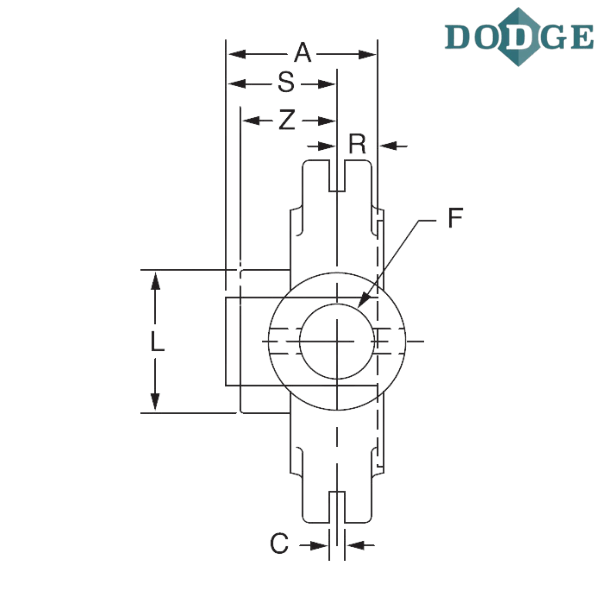

Length Through Bore (A) mm - 40.9

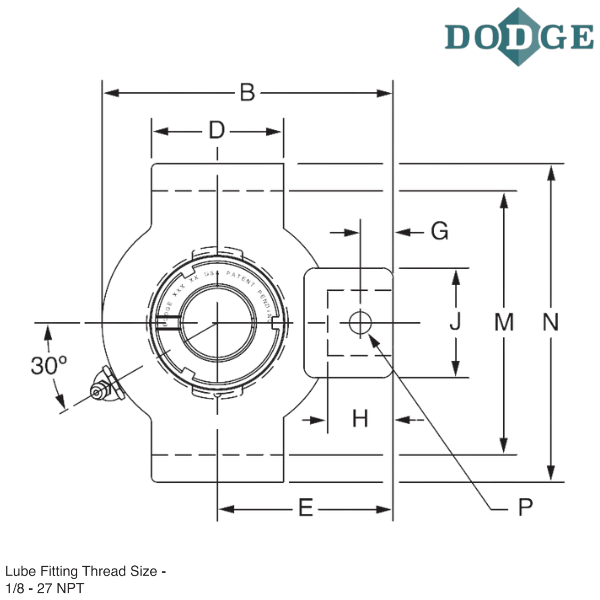

Overall Length (B) mm - 109.5
C (mm) - 6.35
D (mm) - 63.5
E (mm) - 68.3
F (Screw Diameter) mm - 19.1
G (mm) - 12.7
H (mm) - 23.9
J (mm) - 35.1
L (mm) - 52.8
M (mm) - 89.15/88.39
Overall Width (N) mm - 104.9
Pin Diameter (P) mm - 8.1
R (mm) - 13.2
S (mm) - 27.7
Z (mm) - 28.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

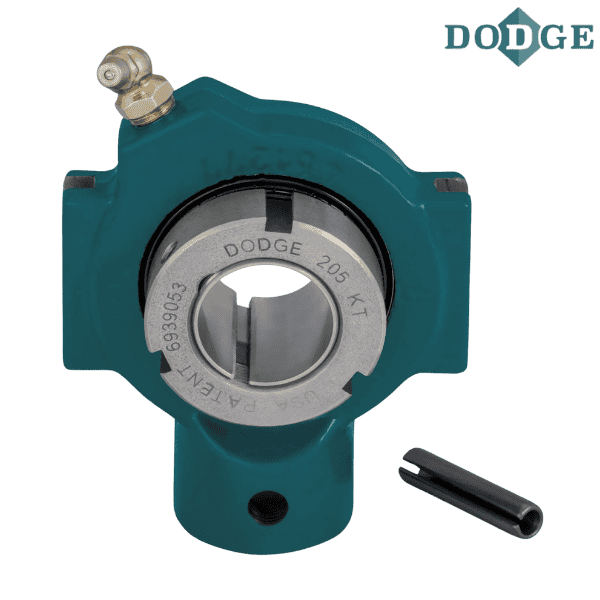

** Images are for representation purposes only
