136246 DODGE - NSTU-GT-60M

Brand - DODGE
Item Number - 136246 DODGE - NSTU-GT-60M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 212
Shaft Size (mm) - 60
Description - NSTU-GT-60M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136218
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136594
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-60M-D
Weight (kg) - 4.9
Take-Up Frame Size - NS415

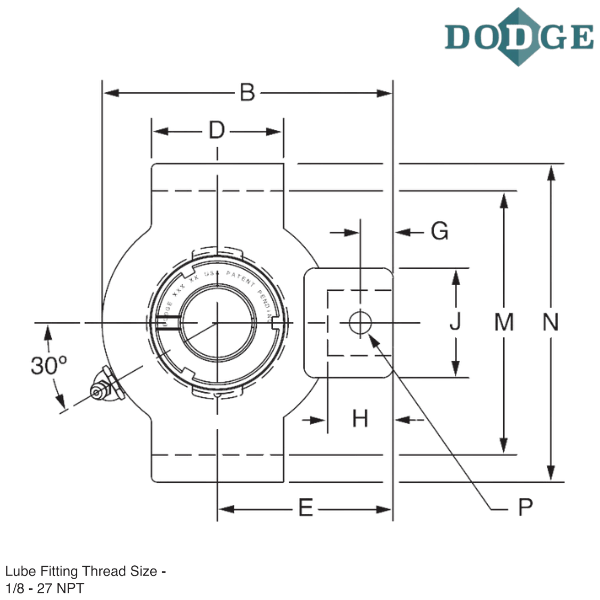

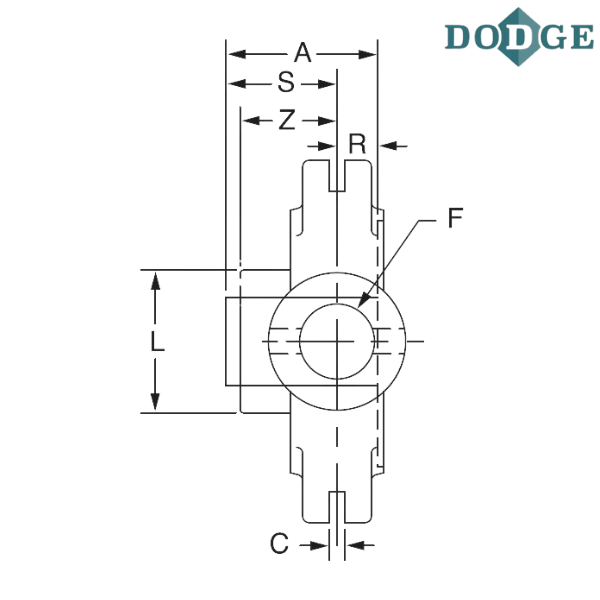

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 169.9
C (mm) - 7.95
D (mm) - 95.3
E (mm) - 98.6
F (Screw Diameter) mm - 25.4
G (mm) - 17.5
H (mm) - 32.5
J (mm) - 41.4
L (mm) - 93.7
M (mm) - 125.65/124.89
Overall Width (N) mm - 146.1
Pin Diameter (P) mm - 11.2
R (mm) - 18.5
S (mm) - 35.3
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

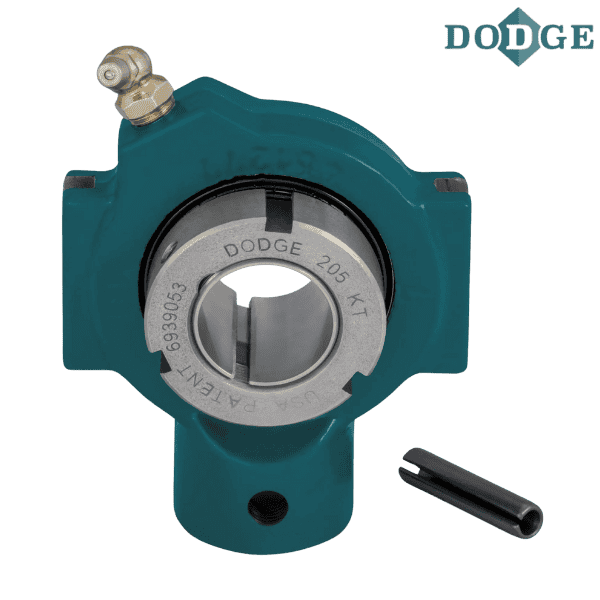

** Images are for representation purposes only
