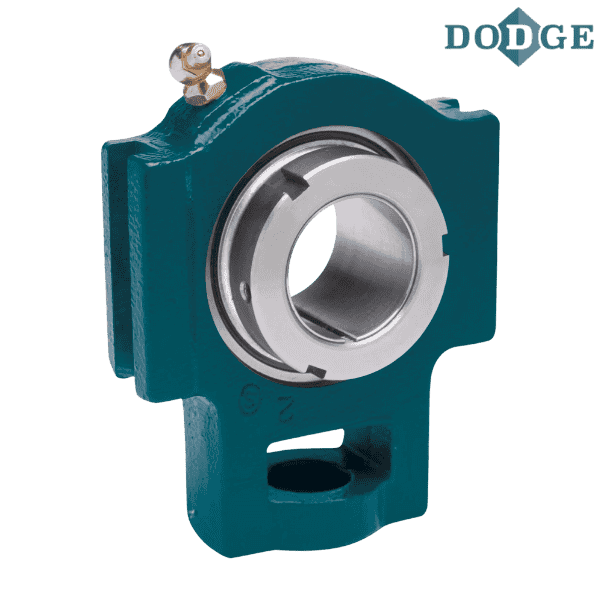

136249 DODGE - WSTU-GT-30M

Brand - DODGE
Item Number - 136249 DODGE - WSTU-GT-30M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 30
Description - WSTU-GT-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136221
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136555
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 1.3
Take- Up Frame Size - WS308

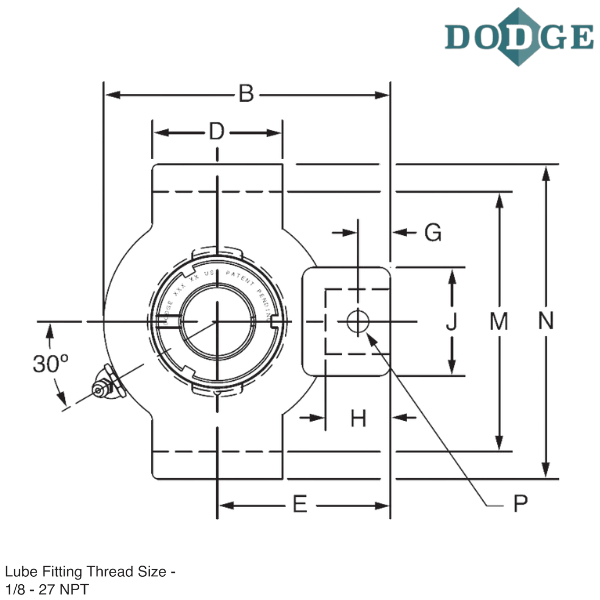

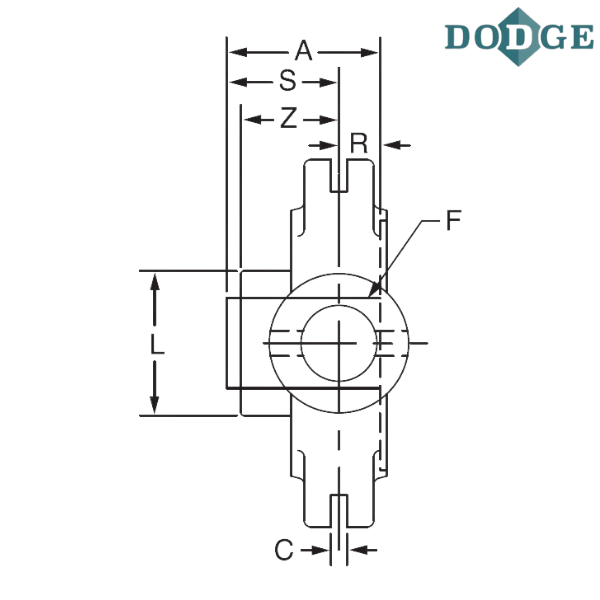

Length Through Bore (A) mm - 40.9
Overall Length (B) mm - 111.3
C (mm) - 13.49
D (mm) - 57.2
E (mm) - 69.9
F (Screw Diameter) mm - 19.1
G (mm) - 9.7
H (mm) - 16
J (mm) - 55.6
K (mm) - 36.6
L (mm) - 52.8
M (mm) - 88.39/89.15
Overall Width (N) mm - 104.9
R (mm) - 13.2
S (mm) - 27.7
Thickness (T) mm - 41.3
Z (mm) - 28.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
