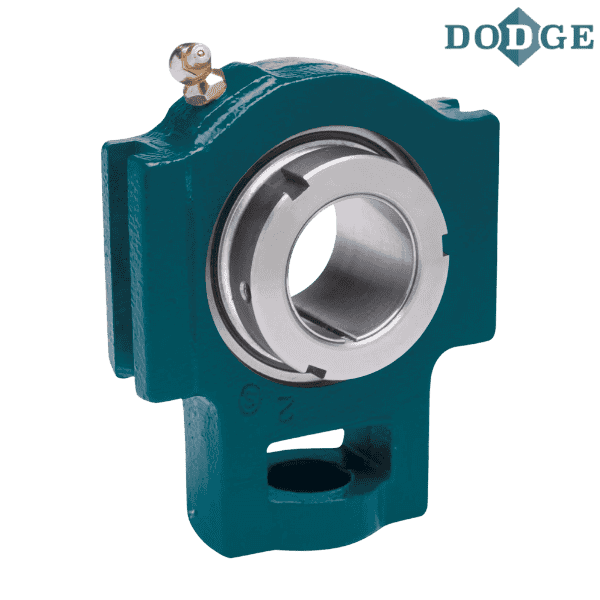

136255 DODGE - WSTU-GT-60M

Brand - DODGE
Item Number - 136255 DODGE - WSTU-GT-60M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (mm) - 60
Description - WSTU-GT-60M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136227
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136594
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-60M-D
Weight (kg) - 4.9
Take- Up Frame Size - WS502

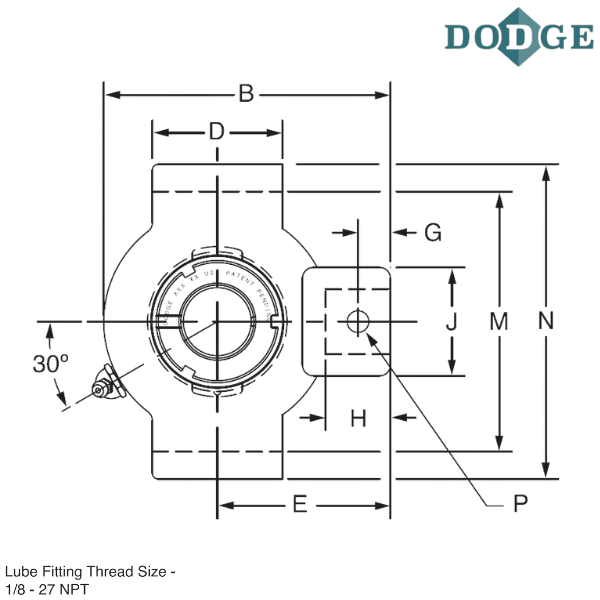

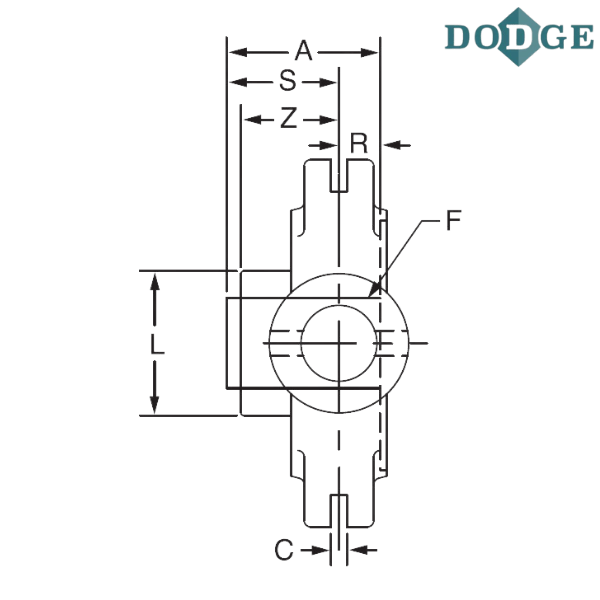

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 190.5
C (mm) - 27
D (mm) - 101.6
E (mm) - 119.1
F (Screw Diameter) mm - 31.8
G (mm) - 19.1
H (mm) - 31.8
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 93.7
M (mm) - 129.79/130.56
Overall Width (N) mm - 149.4
R (mm) - 18.5
S (mm) - 35.3
Thickness (T) mm - 63.5
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
