136262 DODGE - P2B-GTM-50M

Brand - DODGE
Item Number - 136262 DODGE - P2B-GTM-50M
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 211
Shaft Size (mm) - 50
Description - P2B-GTM-50M
Part Number (Unit without Adapter Sleeve and Nut) - 129428
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136566
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-11-50M-D
Weight (kg) - 5.6

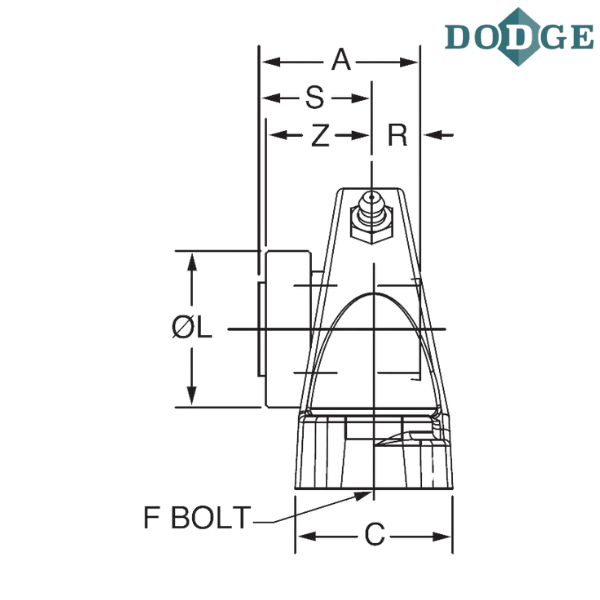

Length Through Bore (A) mm - 49

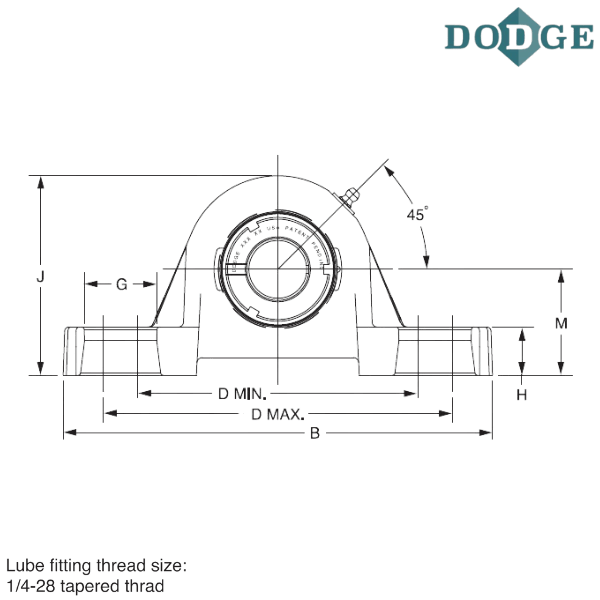

Overall Length (B) mm - 225.6
Width (C) mm - 58.4
Bolt to Bolt Minimum Distance (D min) mm - 162.1
Bolt to Bolt Maximum Distance (D max) mm - 189
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 126
L (mm) - 87.1
Base to Center Height (M) mm - 63.5
R (mm) - 17
S (mm) - 32

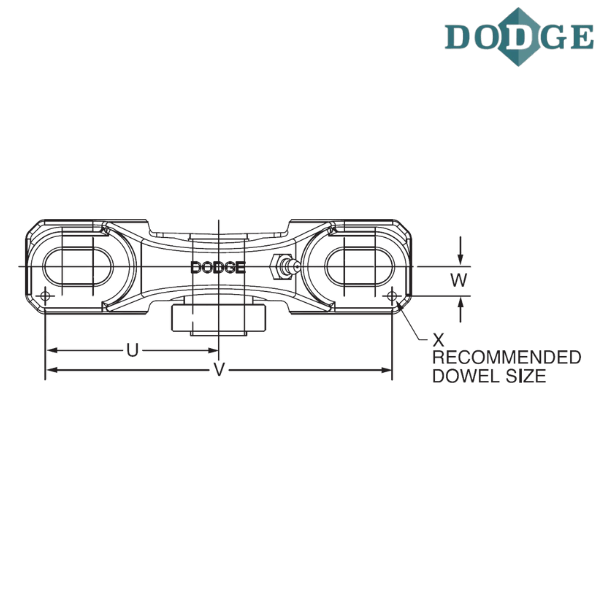

U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Z (mm) - 33.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

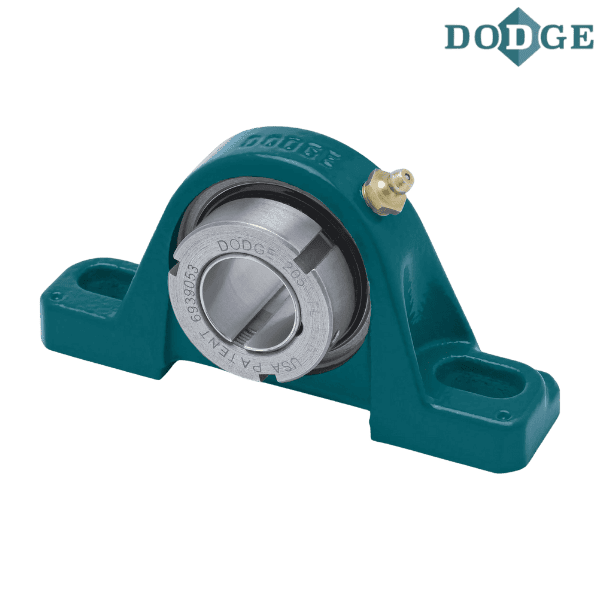

P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
