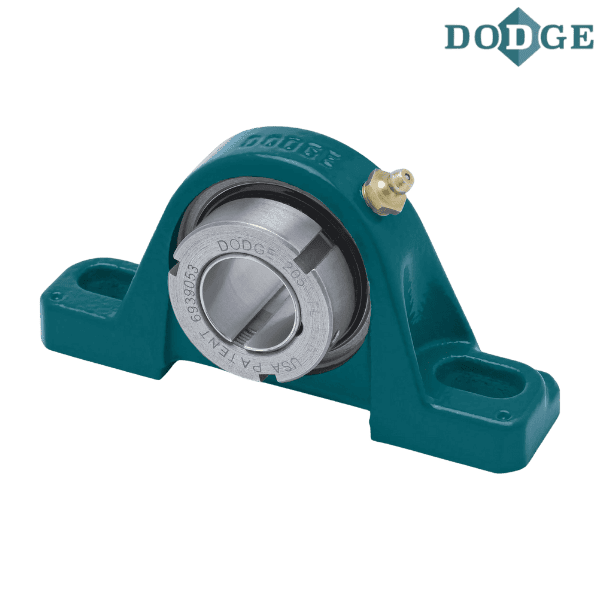

136263 DODGE - P2B-GTM-55M

Brand - DODGE
Item Number - 136263 DODGE - P2B-GTM-55M
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 212
Shaft Size (mm) - 55
Description - P2B-GTM-55M
Part Number (Unit without Adapter Sleeve and Nut) - 129429
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 36567
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-12-55M-D
Weight (kg) - 7

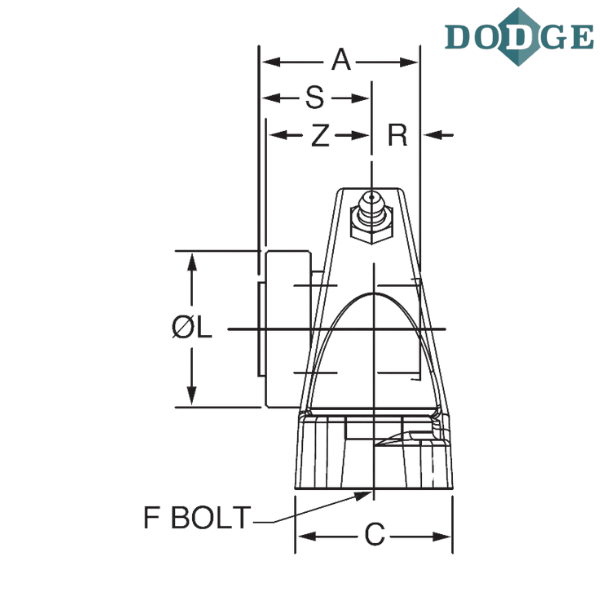

Length Through Bore (A) mm - 53.8

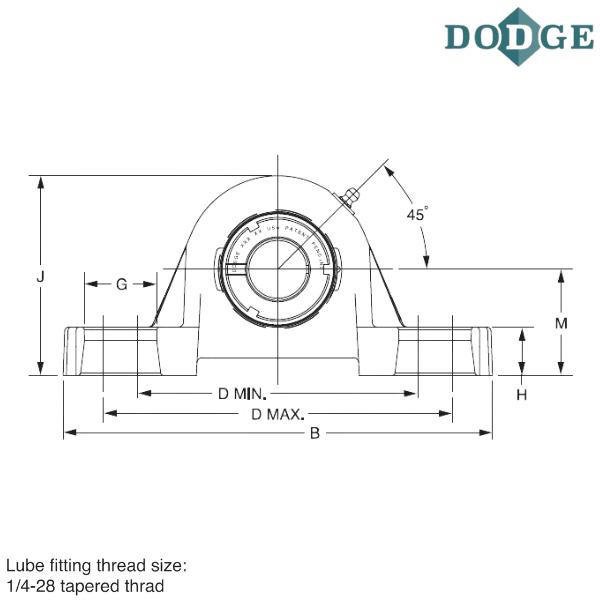

Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 137.2
L (mm) - 93.7
Base to Center Height (M) mm - 69.9
R (mm) - 18.5
S (mm) - 35.3

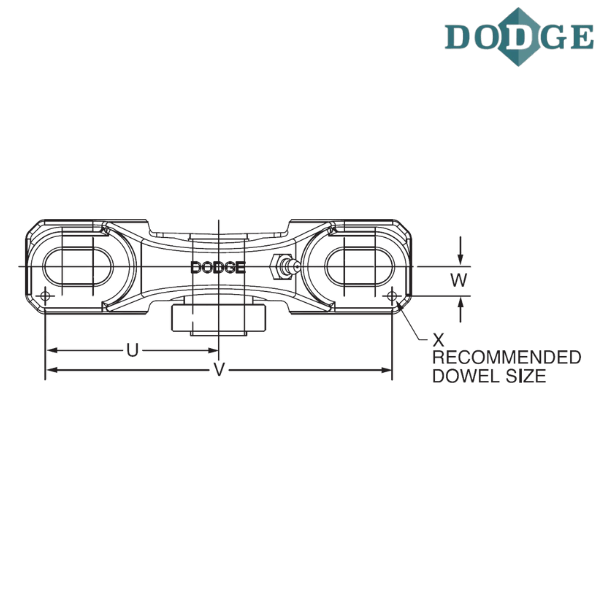

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
